Parameters：

  • Model：TPC6601
  • Manufacturer：HUABAN
  • Date Code：05+
  • Standard Package：3000
  • Min Order：10

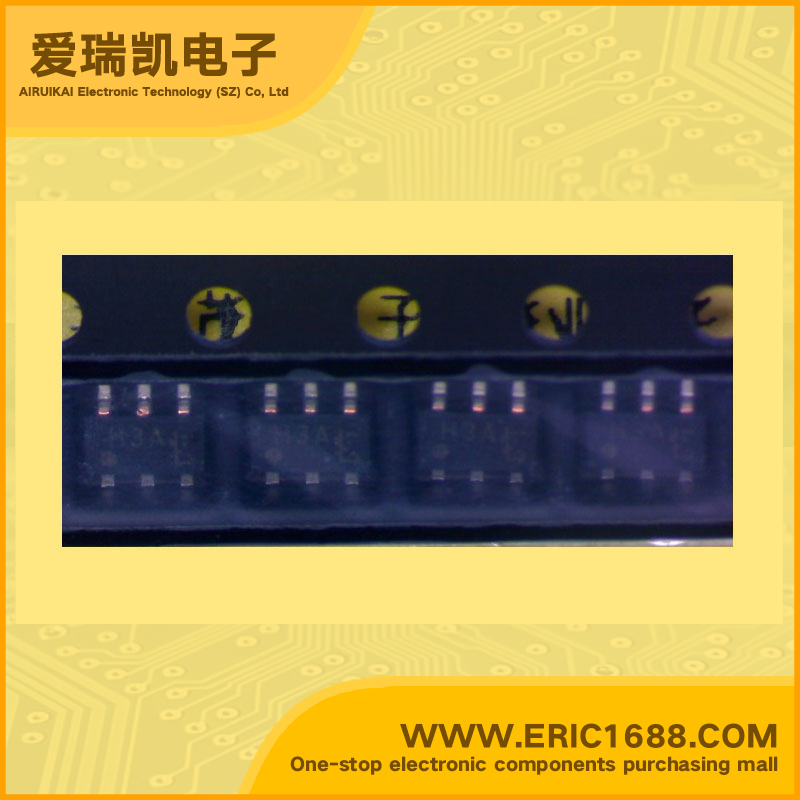

  • Mark/silk print/code/type：H3A
  • Package：SOT-163/SM6/SOT-26

V(BR)CBO

Collector-Base Voltage

  -50V

V(BR)CEO

Collector-Emitter Voltage

  -50V
Collector Current(IC)  -2A
Transtion Frequency(fT)
DC Current Gain(hFE)  200~500

VCE(sat)

Collector-Emitter Saturation Voltage

  -0.2V

Power dissipation (Pd)

  0.8W
Description & Applications  High-Speed Switching Applications
DC-DC Converter Applications
• High DC current gain: hFE = 200 to 500 (IC = −0.3 A)
• Low collector-emitter saturation voltage: VCE (sat) = −0.2 V (max)
• High-speed switching: tf = 90 ns (typ.)


×
