集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) | 40V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) | 40V |
集电极连续输出电流IC
Collector Current(IC) | 100mA/0.1A |
截止频率fT
Transtion Frequency(fT) | 450MHz |
直流电流增益hFE
DC Current Gain(hFE) | 60~120 |
管压降VCE（sat）
Collector-Emitter Saturation Voltage | 250mV/0.25V |
耗散功率Pc
Power Dissipation | 200mW/0.2W |

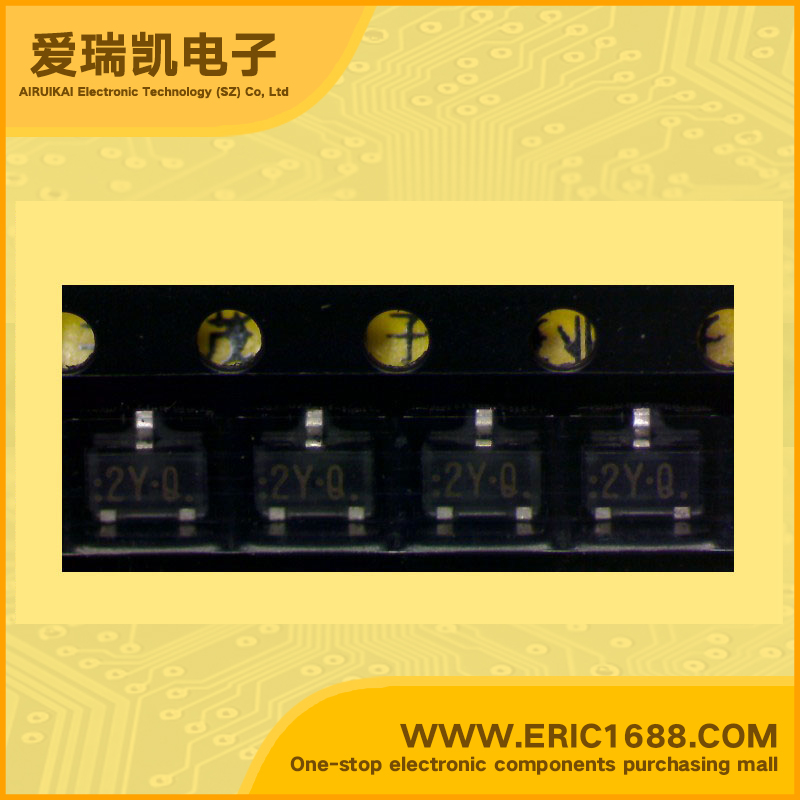

| Description & Applications | NPN Silicon epitaxial planer type For high speed switching Features • High-speed switching • Low collector to emitter saturation voltage VCE(sat) • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. • Allowing pair use with 2SA1738 |
| 描述与应用 | NPN硅外延平面型 对于高速切换 •高速开关 •低集电极到发射极饱和电压VCE（SAT） •迷你型包装，使瘦身带包装盒包装的设备和通过自动插入。 •允许对使用2SA1738 |
