Parameters:

  • Model:UMH12
  • Manufacturer:HUABAN
  • Date Code:05+ 00+
  • Standard Package:3000
  • Min Order:10

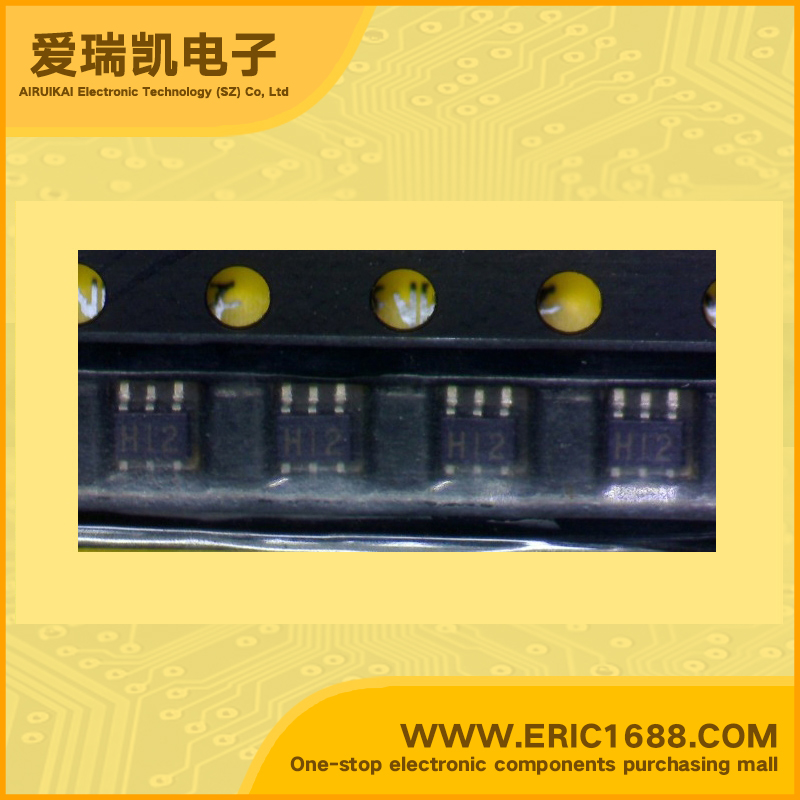

  • Mark/silk print/code/type:H12
  • Package:SOT-363/UMT6/SC-88/SC70-6

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 50V
集电极连续输出电流IC Collector Current(IC) 100mA
Q1基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
Q1电阻比(R1/R2) Q1 Resistance Ratio
Q2基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
Q2电阻比(R1/R2) Q2 Resistance Ratio
直流电流增益hFE DC Current Gain(hFE) 100~600
截止频率fT Transtion Frequency(fT) 250MHz
耗散功率Pc Power Dissipation 150mW/0.15W
Description & Applications Features •General purpose(dual digital transistors) •Two DTC114T chips in a EMT or UMT or SMT package.
描述与应用 特点 •通用(双数字晶体管) •两个DTC114T的在EMT或UMT或SMT封装的芯片

×
