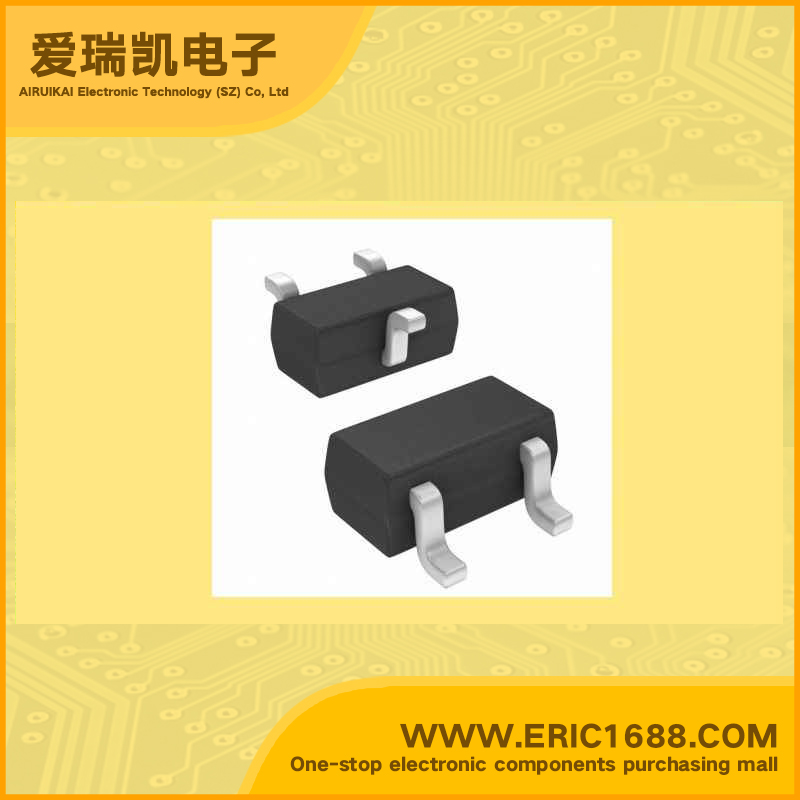

12A01S PNP transistors(BJT) -15V -500mA/-0.5A 490MHz 300~700 -300mV/-0.3V SOT-523/SMCP marking XP Low-Frequency General-Purpose Amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
-12V
集电极连续输出电流IC
Collector Current(IC)
−500mA/-0.5A
截止频率fT
Transtion Frequency(fT)
490MHz
直流电流增益hFE
DC Current Gain(hFE)
300~700 @ -2V,-0.01A
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-300mV/-0.3V
耗散功率Pc
PoWer Dissipation
200mW/0.2W
Description & ApplicationsLow-Frequency General-Purpose Amplifier Applications • Low-frequency Amplifier, small motor drive,muting circuit. • Large current capacitance. • Low collector-to-emitter saturation voltage (resistance). RCE (sat) typ.=0.57Ω [IC=0.5A, IB=25mA]. • Small ON-resistance (Ron).
描述与应用低频通用放大器应用 •低频放大器,小型马达驱动,静音电路。 •大电流容量。 •低集电极 - 发射极饱和电压(电阻)。  RCE(饱和)典型值=0.57Ω[IC= 0.5A,IB=25毫安]。 •小导通电阻(RON)。
