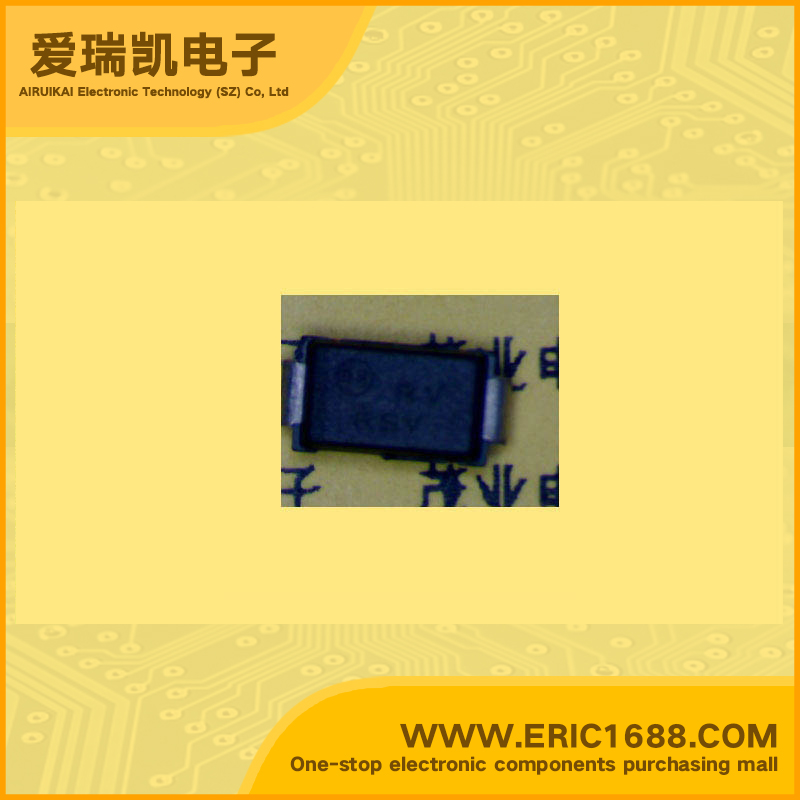

1SMA20AT3 TVS/ESD 20V 12.3A 1.5W DO-214AC/SMA-20V marking RSV

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
20V
反向击穿电压VBR
Breakdown Voltage
23.35V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
400W
峰值脉冲电流IPPm
Peak Forward Surge Current
12.3A
额定耗散功率Pd
Power dissipation
1.5W
Description & Applications400 Watt Peak Power Zener Transient Voltage Suppressors;Features • Working Peak Reverse Voltage Range − 5.0 V to 78 V • Standard Zener Breakdown Voltage Range − 6.7 V to 91.25 V • Peak Power − 400 W @ 1 ms • ESD Rating of Class 3 (> 16 kV) per Human Body Model • Response Time is Typically < 1 ns • Flat Handling Surface for Accurate Placement • Package Design for Top Slide or Bottom Circuit Board Mounting • Low Profile Package • Pb−Free Packages are Available
描述与应用400瓦峰值功率稳压 瞬态电压 抑制器;特点 •工作峰值反向电压范围 - 5.0 V到78 V •标准齐纳击穿电压范围 - 6.7 V至91.25 V •峰值功率 - 400 W @1 ms的 •每人体模型ESD额定值的3类(>16千伏) •响应时间通常小于1 ns •精确放置的平面处理表面 •滑动顶部或底部的电路板安装的包装设计 •薄型封装 •无铅包可用
