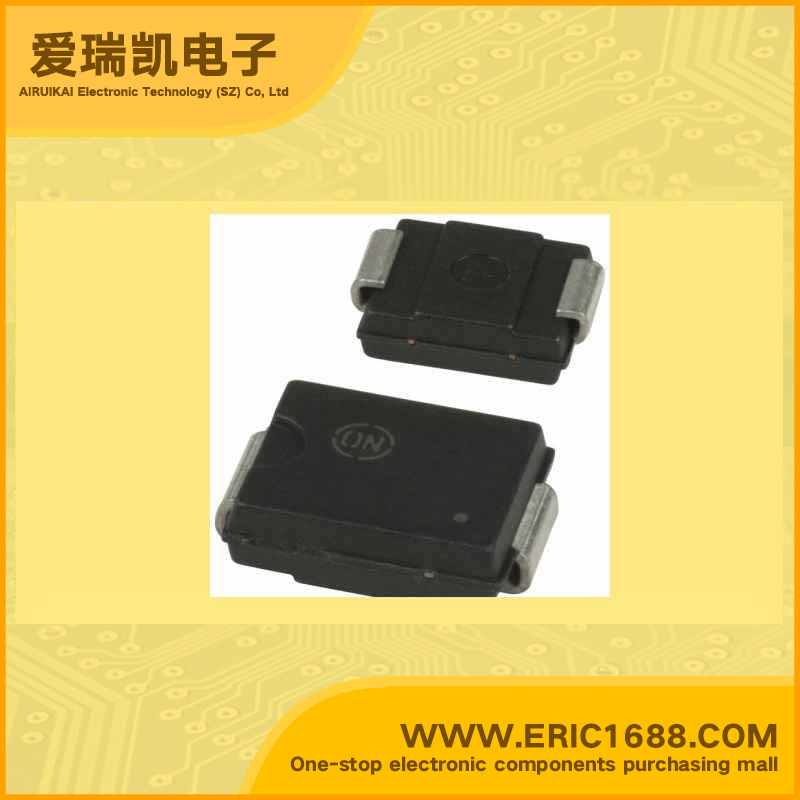

1SMC70AT3G TVS/ESD 70V 13.3A 4W DO-214AB/SMC-70V marking GGP

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
70V
反向击穿电压VBR
Breakdown Voltage
81.9V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
1500W
峰值脉冲电流IPPm
Peak Forward Surge Current
13.3A
额定耗散功率Pd
Power dissipation
4W
Description & Applications1500 Watt Peak Power Zener Transient Voltage Suppressors;Specification Features • Working Peak Reverse Voltage Range – 5.0 V to 78 V • Standard Zener Breakdown Voltage Range – 6.7 V to 91.25 V • Peak Power – 1500 Watts @ 1 ms • ESD Rating of Class 3 (>16 KV) per Human Body Model • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage < 5 µA Above 10 V • UL 497B for Isolated Loop Circuit Protection • Maximum Temperature Coefficient Specified • Response Time is Typically < 1 ns
描述与应用1500瓦峰值功率稳压 瞬态电压抑制器;规格特性 •工作峰值反向电压范围 - 5.0 V到78 V •标准齐纳击穿电压范围 - 6.7 V至91.25 V •峰值功率 - 1500W@ 1ms •3级(>16 KV)每人体模型ESD额定值 •最大钳位电压@峰值脉冲电流 •低漏<5μA大于10 V •UL497B用于隔离回路的电路保护 •额定最大温度系数 •响应时间通常小于1 ns
