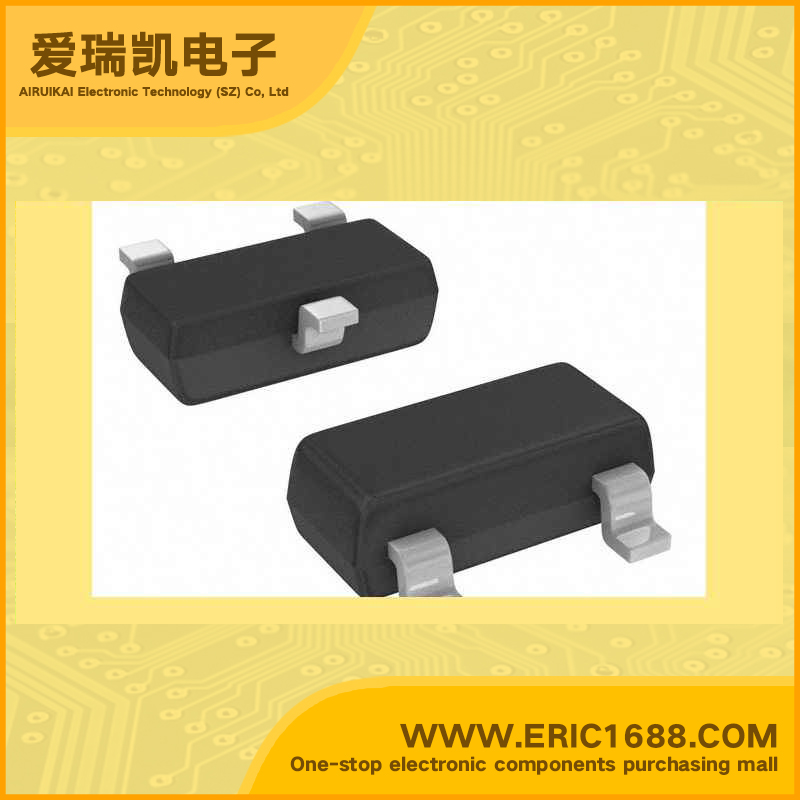

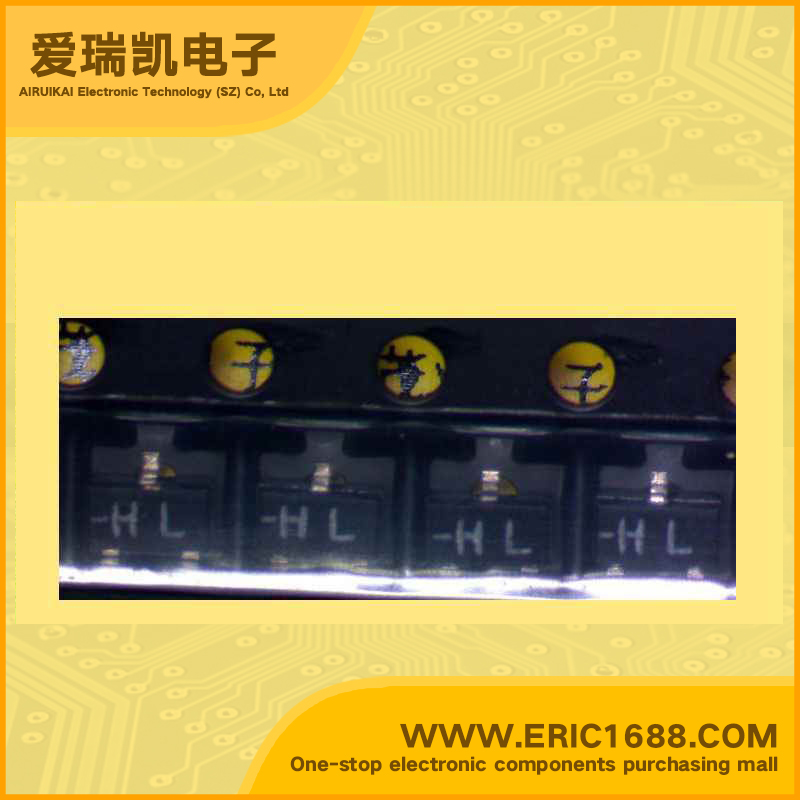

2SA1502 PNP transistors（BJT） -50V -100mA/-0.1A 250MHz 50 -500mV/-0.5V SOT-23/CP marking HL switch/bias resistor
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | −100mA/-0.1A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | applications: switching circuit， inverter circuit，interface circuit，driver circuit； on-chip bias resistance：R1=2.2kΩ，R2=10k Ω |
| 描述与应用 | 应用： 开关电路，逆变电路，接口电路，驱动电路; 片上偏置电阻R1 =2.2KΩ，R2=10KΩ |
