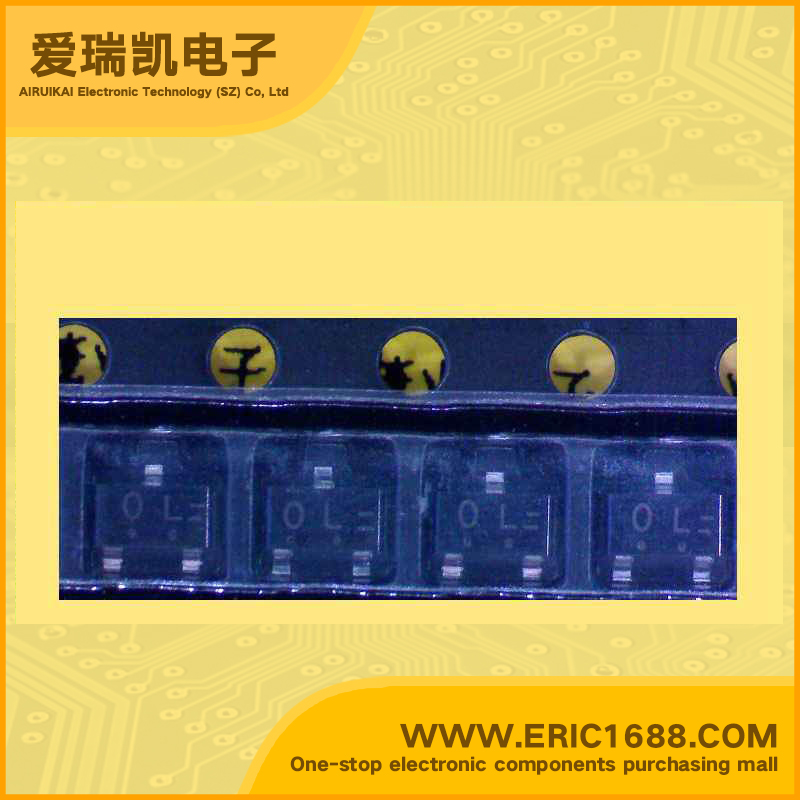

2SA1521 PNP transistors(BJT) -50V -500mA/-0.5A 250MHz 50 -100mV/-0.1V SOT-23/CP marking OL switch/bias resistor

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-50V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−50V
集电极连续输出电流IC
Collector Current(IC)
−500mA/-0.5A
截止频率fT
Transtion Frequency(fT)
250MHz
直流电流增益hFE
DC Current Gain(hFE)
50
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-100mV/-0.1V
耗散功率Pc
PoWer Dissipation
200mW/0.2W
Description & ApplicationsSwitching Applications (with Bias Resistance) Applications · Swicthing circuits, inverter circuits, interface circuits,driver circuits. Features · On-chip bias resistance : R1=2.2kΩ, R2=2.2kΩ. · Small-sized package : CP. · Large current capacity : IC=500mA.
描述与应用切换应用程序(带偏置电阻) 应用  ·Swicthing电路,逆变器电路,接口电路,驱动器电路。 特点  ·片上偏置电阻:R1=2.2KΩ,R2=2.2KΩ。  ·小型封装:CP。  ·大电流容量:IC=500mA的电流。
