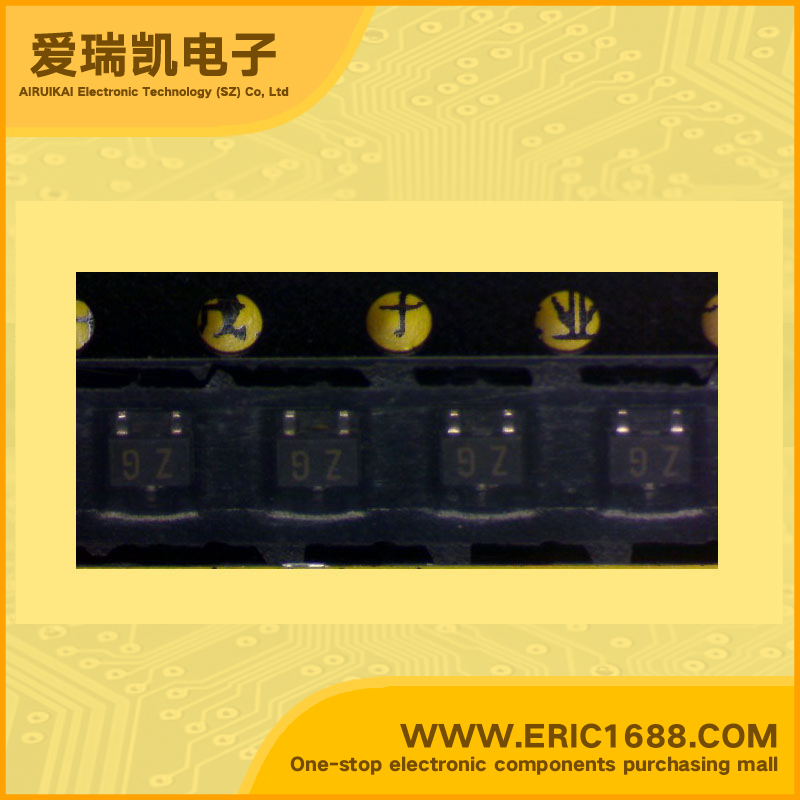

2SA1588 PNP transistors（BJT） -35V -500mA/-0.5A 200MHz 70~240 -800mV/-0.8V SOT-323/SC-70 marking ZG radio /driver stage amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -35V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流IC Collector Current(IC) | −500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 70~240 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −800mV/-0.8V |
| 耗散功率Pc PoWer Dissipation | 100mW/0.1W |
| Description & Applications | silicon PNP epitaxial audio frequency low power amplifier application； driver amplifier applications； switching application； excellent hFE linearity； complement to 2sc4118 |
| 描述与应用 | 硅PNP外延 低功耗音频放大器应用; 驱动放大器的应用; 开关应用程序; HFE出色的线性度; 补充2sc4118 |
