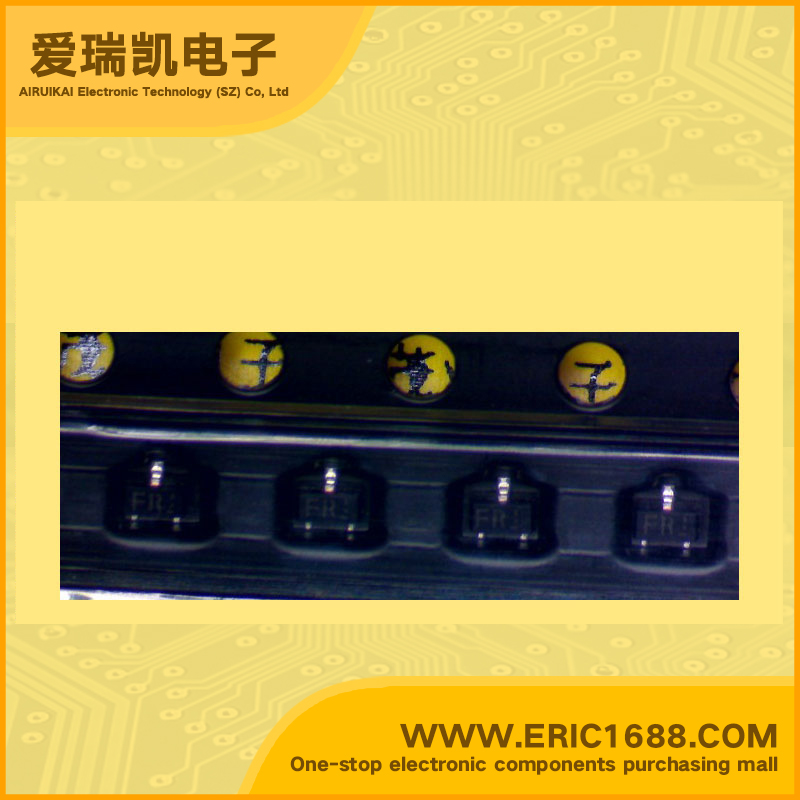

2SA1774 PNP transistors（BJT） -60V -150mA/-0.15A 140MHz 180~390 -500mV/-0.5V SOT-523/EMT3 marking FR
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | −60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | −150mA/-0.15A |
| 截止频率fT Transtion Frequency(fT) | 140MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 180~390 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation | 150mW/0.15W |
| Description & Applications | General Purpose Transistor Features 1) Excellent hFE linearity. 2) Complements the 2SC2412K /2SC4081 / 2SC4617 / 2SC1740S |
| 描述与应用 | 通用晶体管 特点 1）很棒HFE线性。 2）补充2SC2412K/2SC4081/2SC4617/2SC1740S |
