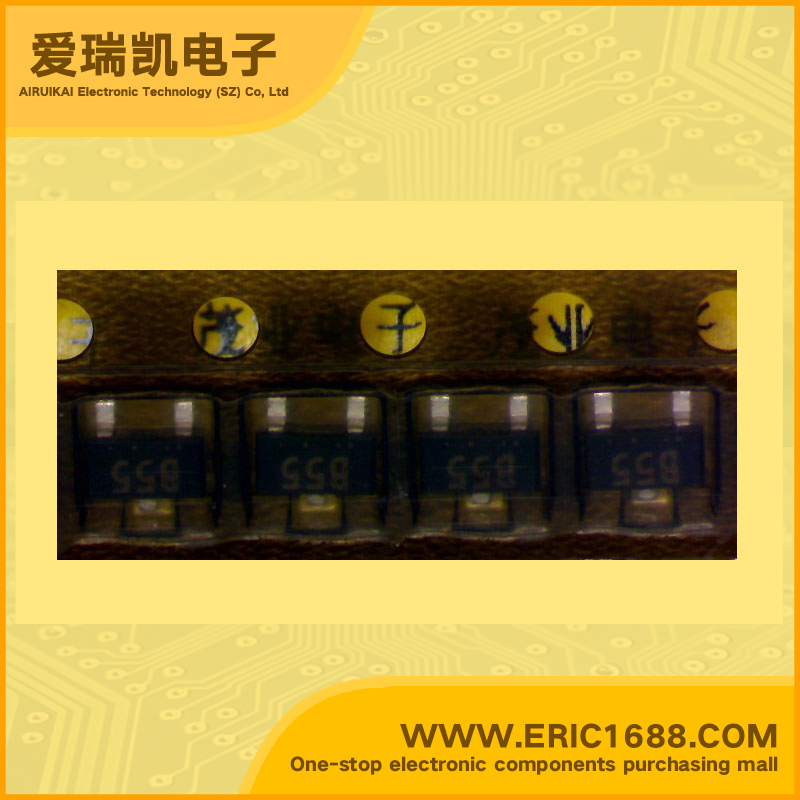

2SB736A PNP transistors（BJT） -80V -300mA/-0.3A 100MHz 250~400 -600mV/-0.6V SOT-23/SC-59 marking B55 radio audio frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −80V |
| 集电极连续输出电流IC Collector Current(IC) | −300mA/-0.3A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 250~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −600mV/-0.6V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | PNP Silicon epitaxial planar transistor Audio frequency power amplifier Features Micro package High DC current gain Complementary to 2SD780A |
| 描述与应用 | PNP硅外延平面晶体管 音频功放 特点 微型封装 高直流电流增益 互补2SD780A |
