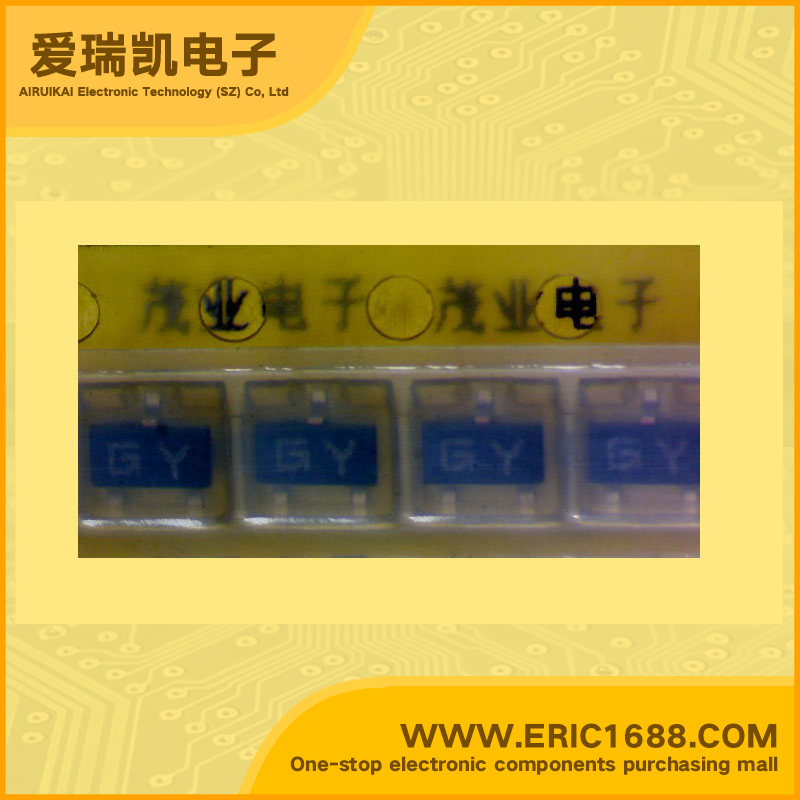

2SC2996 NPN Transistors(BJT) 40V 50mA 350MHz 120~240 SOT-23/SC-59 marking GY high-frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 30V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 350MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | NPN Silicon epitaxial Transistors FM/AM,RF,MIX,IF High frequency amplifier applications High stability oscillation voltage on FM local oscillator |
| 描述与应用 | NPN硅外延晶体管 FM / AM，RF，混频，IF 高频放大器的应用 高稳定性FM本地振荡器的振荡电压 |
