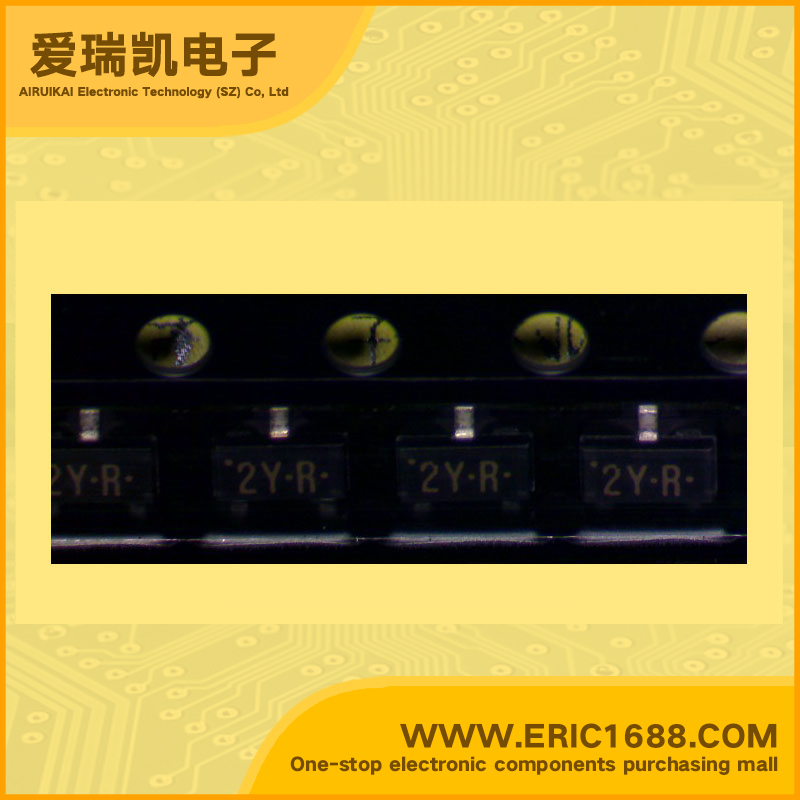

2SC3757-R NPN Transistors(BJT) 40V 100mA/0.1A 450MHz 90~200 250mV/0.25V SOT-23/SC-59 marking 2YR fast switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 450MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 90~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial planer type For high speed switching Features • High-speed switching • Low collector to emitter saturation voltage VCE(sat) • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. • Allowing pair use with 2SA1738 |
| 描述与应用 | NPN硅外延平面型 对于高速切换 •高速开关 •低集电极到发射极饱和电压VCE（SAT） •迷你型包装，使瘦身带包装盒包装的设备和通过自动插入。 •允许对使用2SA1738 |
