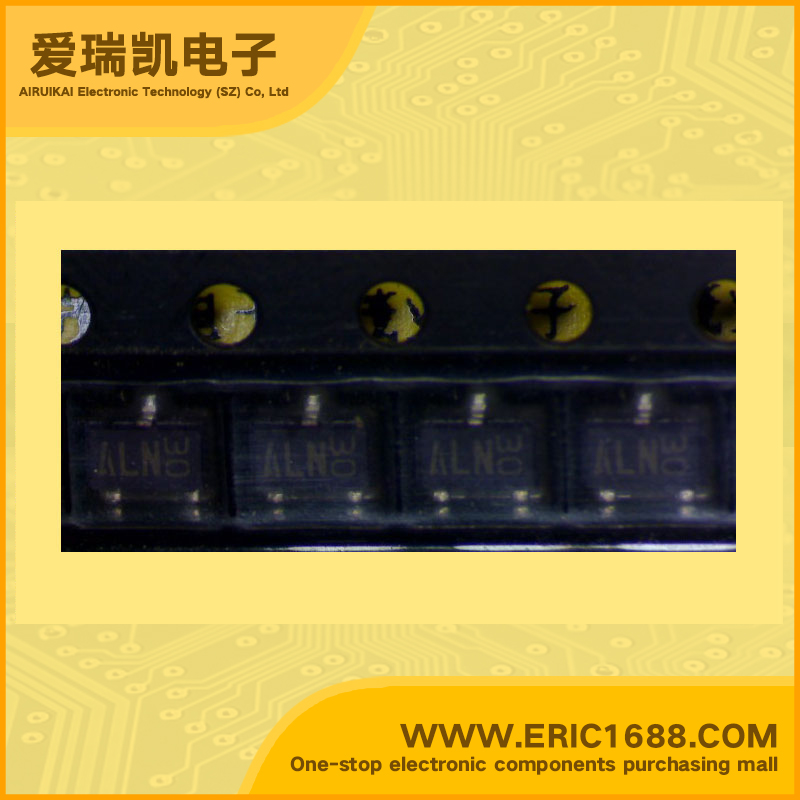

2SC3802K NPN Transistors(BJT) 30V 30mA 1.1GHz 56~120 500mV/0.5V SOT-23/SC-59/SMT3 marking ALN ultra high frequency/ ultra high frequencyoscillator mixer
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
10V |
| 集电极连续输出电流IC Collector Current(IC) |
30mA |
| 截止频率fT Transtion Frequency(fT) |
1.1GHz |
| 直流电流增益hFE DC Current Gain(hFE) |
56~120 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
500mV/0.5V |
| 耗散功率Pc Power Dissipation |
200mW/0.2W |
| Description & Applications | Epitaxial planar NPN Silicon transistor UHF/VHF Oscillator mixer Low feedback capacitance High gain bandwidth product Low collector to base time constant |
| 描述与应用 | 外延平面NPN硅晶体管 超高频/ 甚高频振荡器混频器 低反馈电容 高增益带宽积 低集电极到基极时间常数 |
