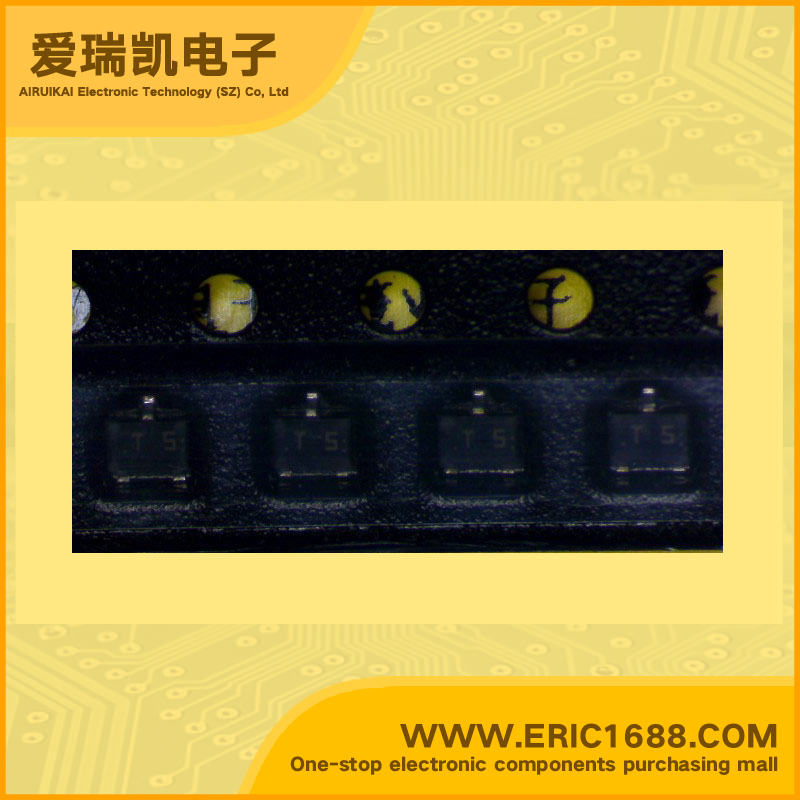

2SC3929A NPN Transistors(BJT) 55V 50mA 80MHz 260~520 600mV/0.6V SOT-323/SC-70 marking TS low frequency output amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 55V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 80MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 260~520 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 600mV/0.6V |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For low-frequency output amplification Complementary to 2SA1531 and 2SA1531A Low noise voltage NV High foward current transfer ratio hFE S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于低频输出放大 与2SA1531和2SA1531A互补 低噪声电压NV 高电流传输比HFE S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
