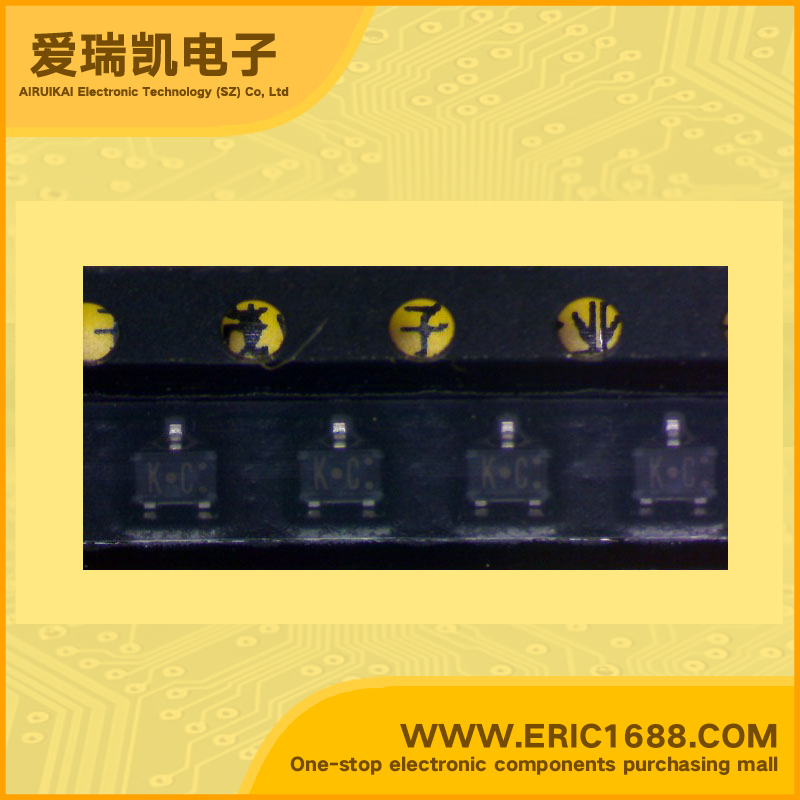

2SC3936 NPN Transistors(BJT) 30V 30mA 230MHz 110~250 SOT-323/SC-70 marking KC RF amplifier oscillation mixing FM/ AMradios
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
20V |
| 集电极连续输出电流IC Collector Current(IC) |
30mA |
| 截止频率fT Transtion Frequency(fT) |
230MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
110~250 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc Power Dissipation |
150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For high-frequency amplification Optimum for RF amplification, oscillation, mixing, and IF of FM/AM radios S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于高频放大 最适合用于射频放大，振荡，混频的FM/ AM收音机 S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
