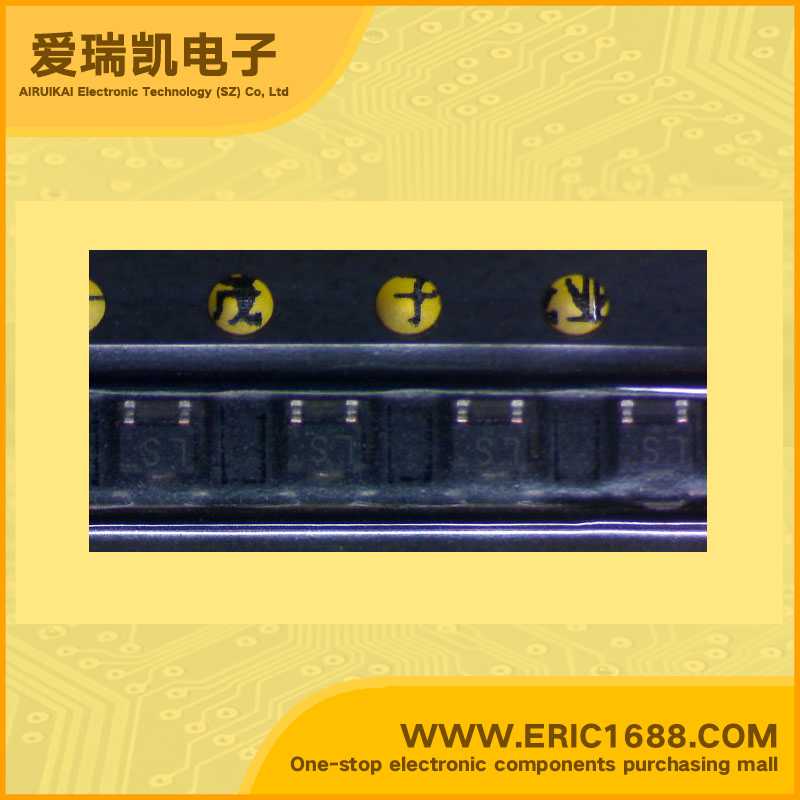

2SC4081 NPN Transistors(BJT) 60V 150mA/0.15A 180MHz 270~560 400mV/0.4V SOT-323/SC-70/UMT3 marking LS
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC Collector Current(IC) |
150mA/0.15A |
| 截止频率fT Transtion Frequency(fT) |
180MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
120~560 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
400mV/0.4V |
| 耗散功率Pc Power Dissipation |
200mW/0.2W |
| Description & Applications | General purpose transistor Low Cob Cob=2.0pF |
| 描述与应用 | 通用晶体管 低COB Cob=2.0pF |
