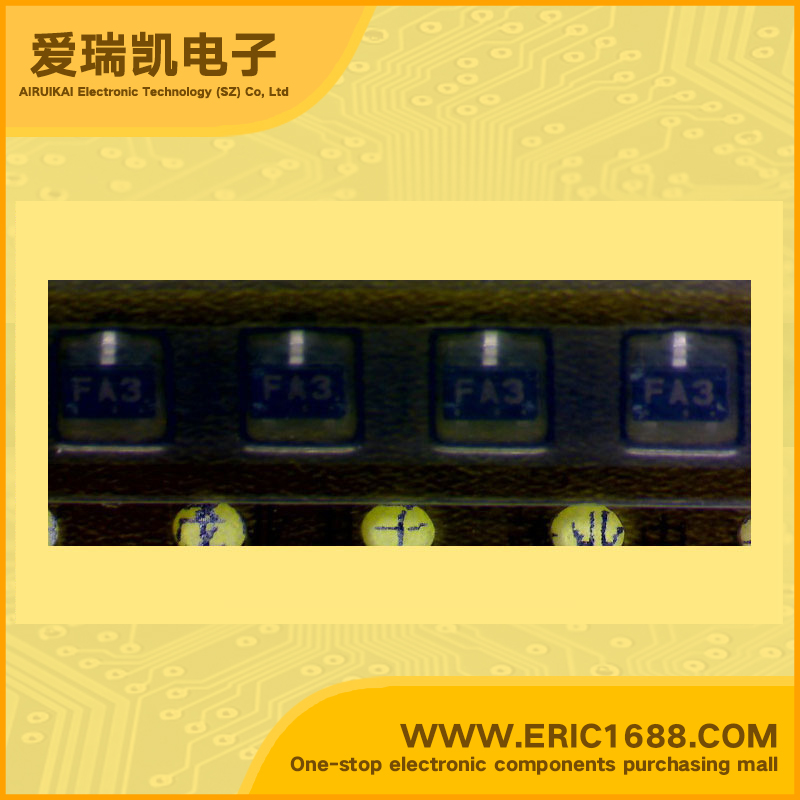

2SC4179 NPN Transistors(BJT) 50V 50mA 250MHz 60~120 80mV SOT-323/SC-70 marking FA3 AM/FMRF amplifier mixer oscillator switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 30V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 60~120 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 80mV |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | FM/AM RF AMPLIFIER,MIXER,OSCILLATOR,CONVERTER NPN Silicon Epitaxial transistor High Gain Bandwidth Product Low Output Capacitance Low Noise Figure |
| 描述与应用 | AM / FM射频放大器，混频器，振荡器，转换器 NPN硅外延晶体管 高增益带宽产品 低输出电容 低噪声图 |
