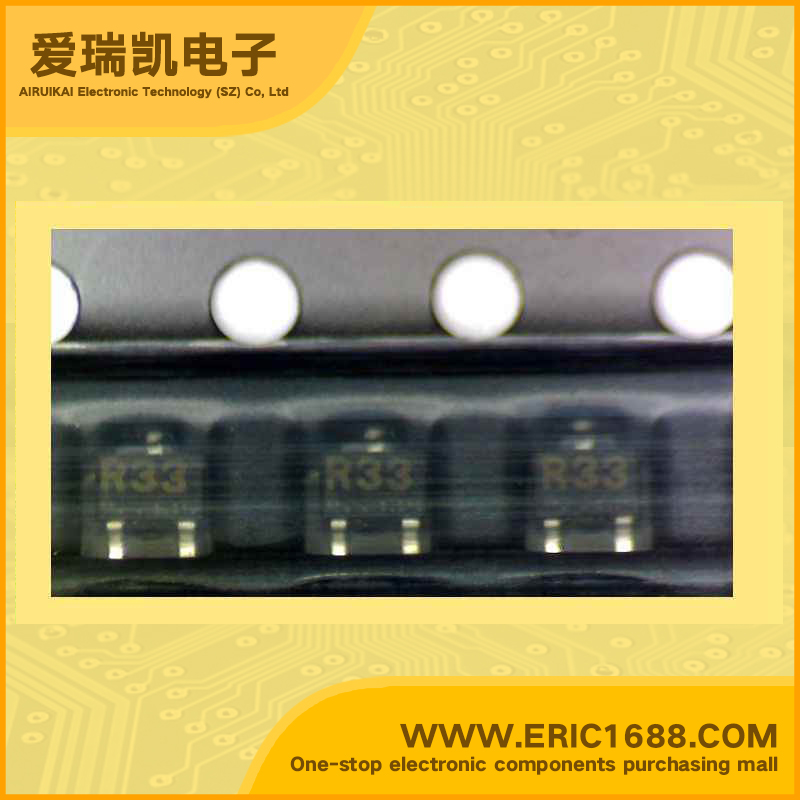

2SC4227 NPN Transistors(BJT) 20V 65mA 7GHz 40~90 SOT-323/SC-70 marking R33 high-frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
10V |
| 集电极连续输出电流IC Collector Current(IC) |
65mA |
| 截止频率fT Transtion Frequency(fT) |
7GHz |
| 直流电流增益hFE DC Current Gain(hFE) |
40~90 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc Power Dissipation |
150mW/0.15W |
| Description & Applications | TOSHIBA Transistor Silicon NPN Epitaxial Type HIGH FREQUENCY AMPLIFIER APPLICATIONS FM,RF,MIX,IF AMPLIFIER APPLICATIONS Small Reverse Transfer Capacitance Low Noise Figure |
| 描述与应用 | 东芝晶体管的硅NPN外延型 高频放大器应用 MIX，FM，RF，IF放大器应用 小反向传输电容 低噪声图 |
