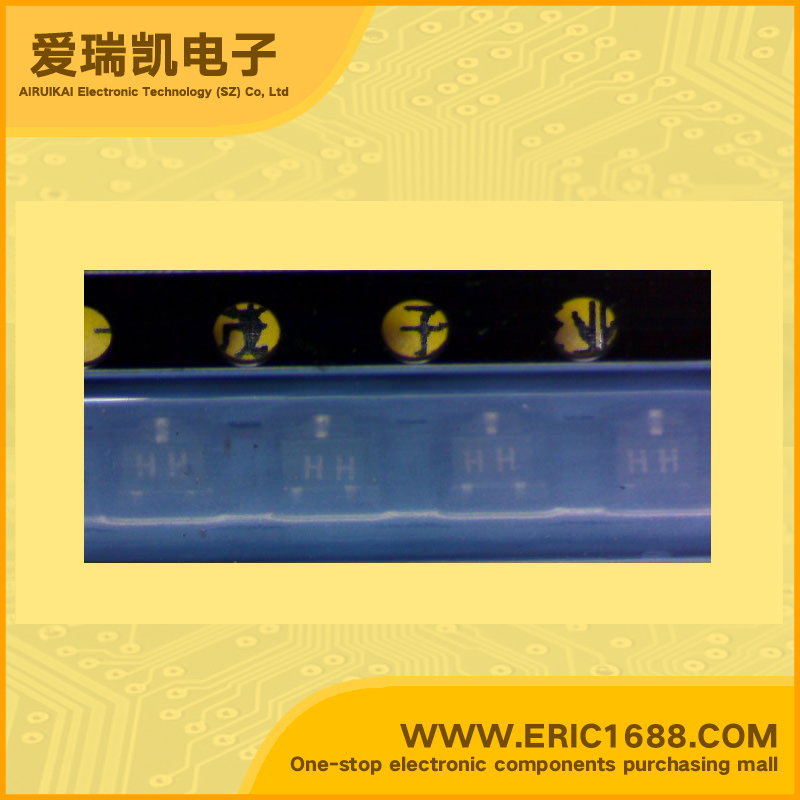

2SC4253 NPN Transistors(BJT) 30V 50mA 600MHz 70 200mV/0.2V SOT-323/SC-70/USM marking HH IF amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 600MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 70 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 200mV/0.2V |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | TOSHIBA Transistor Silicon NPN Epitaxial planar Type TV FINAL PICTURE IF AMPLIFIER APPLICATIONS Good Linearity of fT |
| 描述与应用 | 东芝晶体管NPN硅外延平面型 IF放大器应用 良好的fT线性 |
