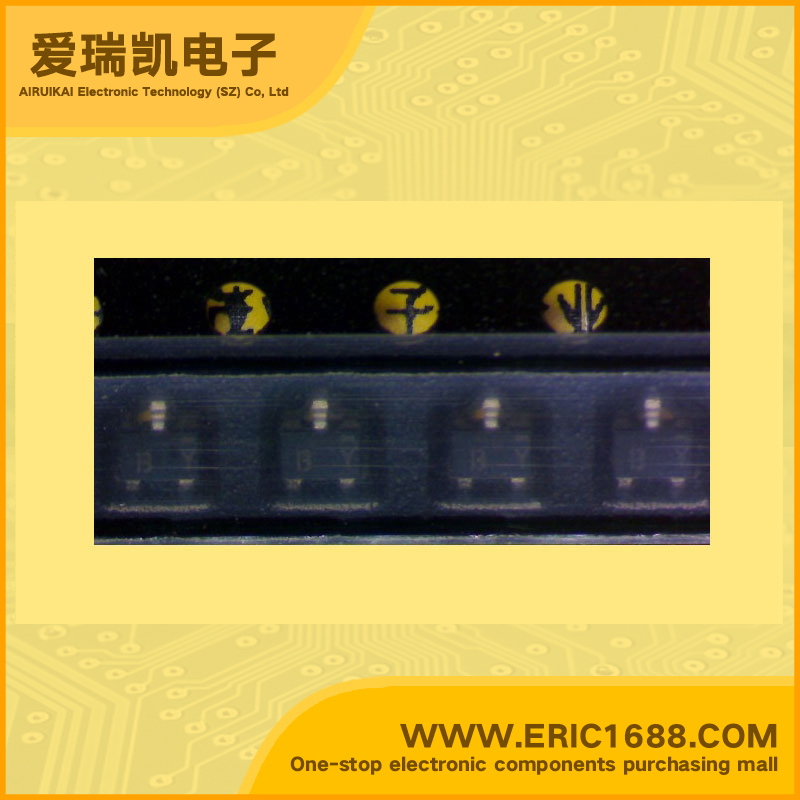

2SC4396 NPN Transistors(BJT) 50V 100mA/0.1A 250MHz 50 100mV/0.1V SOT-323/SC-70/MCP marking BY switch inverting interface drive circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 100mV/0.1V |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | PNP/NPN Epitaxial planar Silicon transistor Switching Applications Switch circuit,inverter circuit, interface circuit driver circuit On-chip bias resistance Very small-sized package permitting 2SA1673/2SC4396-applied sets to be smaller and slimmer |
| 描述与应用 | PNP/ NPN外延平面硅晶体管 开关应用 开关电路，逆变电路，接口电路，驱动电路 片上偏置电阻 非常小的封装尺寸允许2SA1676/2SC4396应用设置更小和更薄 |
