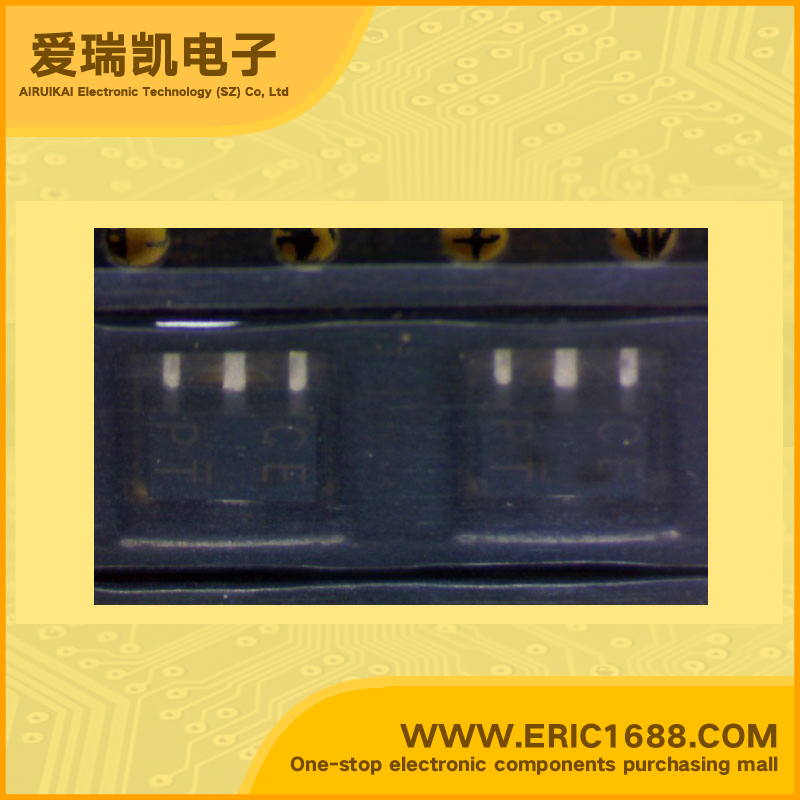

2SC4505P NPN Transistors(BJT) 400V 100mA/0.1A 20MHz 82~120 50mV SOT-89/SC-62/MPT3 marking CEP fast switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
400V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
400V |
| 集电极连续输出电流IC Collector Current(IC) |
100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) |
20MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
82~120 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
50mV |
| 耗散功率Pc Power Dissipation |
500mW/0.5W |
| Description & Applications | Power Transistor (400V, 0.1A) High breakdown voltage. (BVCEO = 400V) Low saturation voltage High switching speed, typically tf = 1.7µs at Ic =100mA. Complements the 2SC4505 and the 2SA1759 |
| 描述与应用 | 功率晶体管（400V，0.1A） 高击穿电压（BVCEO =400V） 低饱和电压 高开关速度 与2SC4505和2SA1759互补 |
