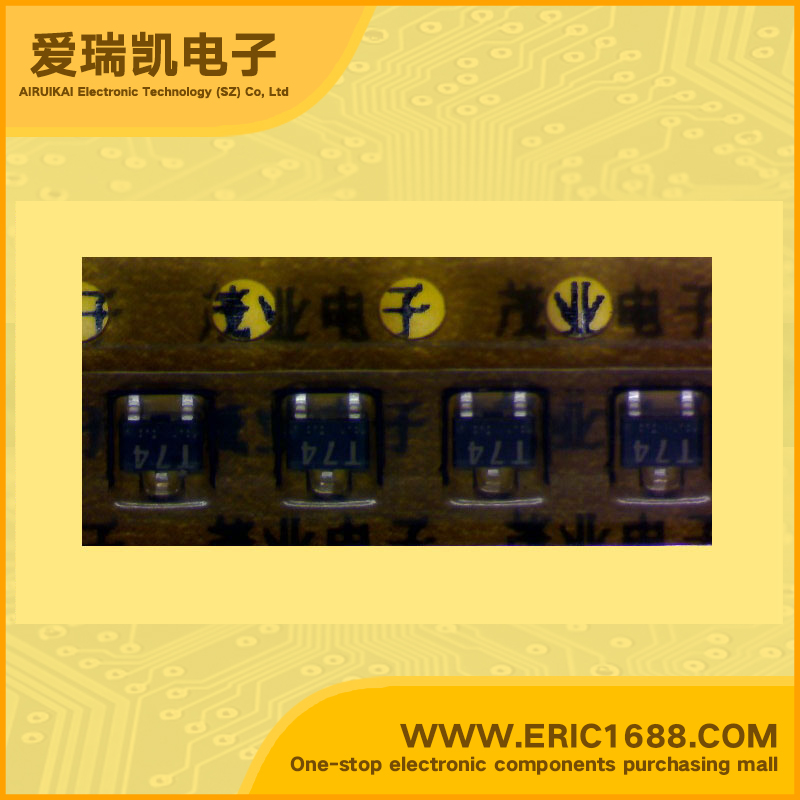

2sc4570 NPN Transistors(BJT) 20V 30mA 5.5GHz 100~200 500mV/0.5V SOT-323/SC-70 marking t74
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 30mA |
| 截止频率fT Transtion Frequency(fT) | 5.5GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 120mW/0.12W |
| Description & Applications | NPN SILICON EPITAXIAL TRANSISTOR High fT : 5.5 GHz Low Cob : 0.7 pF Super Mini Mold Package |
| 描述与应用 | NPN硅外延晶体管 高FT：5.5 GHz 低的COB：0.7 pF 超级迷你模具封装 |
