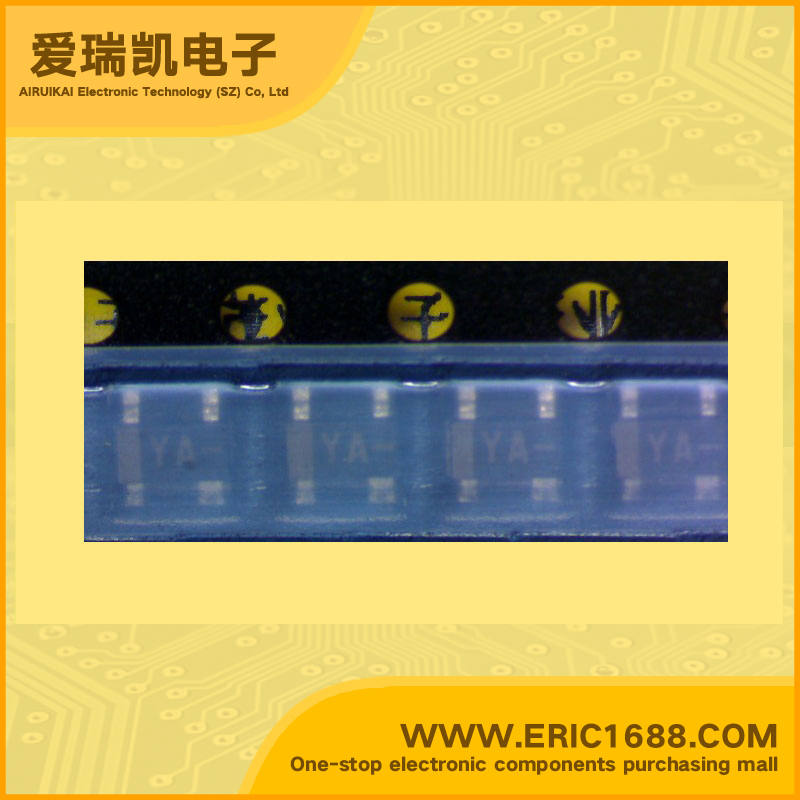

2SC4791 NPN Transistors(BJT) 15V 20mA 10Ghz 50~250 SOT-143/MPAK-4 marking YA
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 8V |
| 集电极连续输出电流IC Collector Current(IC) | 20mA |
| 截止频率fT Transtion Frequency(fT) | 10Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~250 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features •Silicon NPN epitaxial planar type •High gain bandwidth product fT = 10 GHz Typ. •High gain, low noise figure PG = 15.5 dB Typ, NF = 1.2 dB Typ at f = 900 MHz Application •VHF / UHF wide band amplifier |
| 描述与应用 | 特点 •NPN硅外延平面型 •高增益带宽乘积fT=10 GHz的典型。 •高增益，低噪声系数，PG=15.5 dB（典型值），NF= 1.2 dB（典型值）在f=900兆赫 应用 •VHF / UHF宽频带放大器 |
