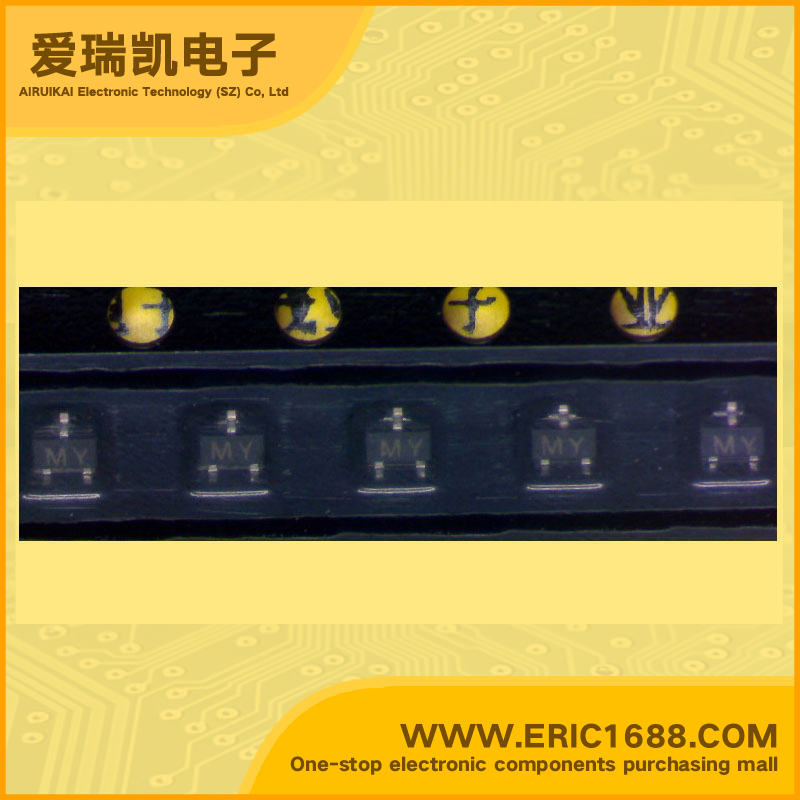

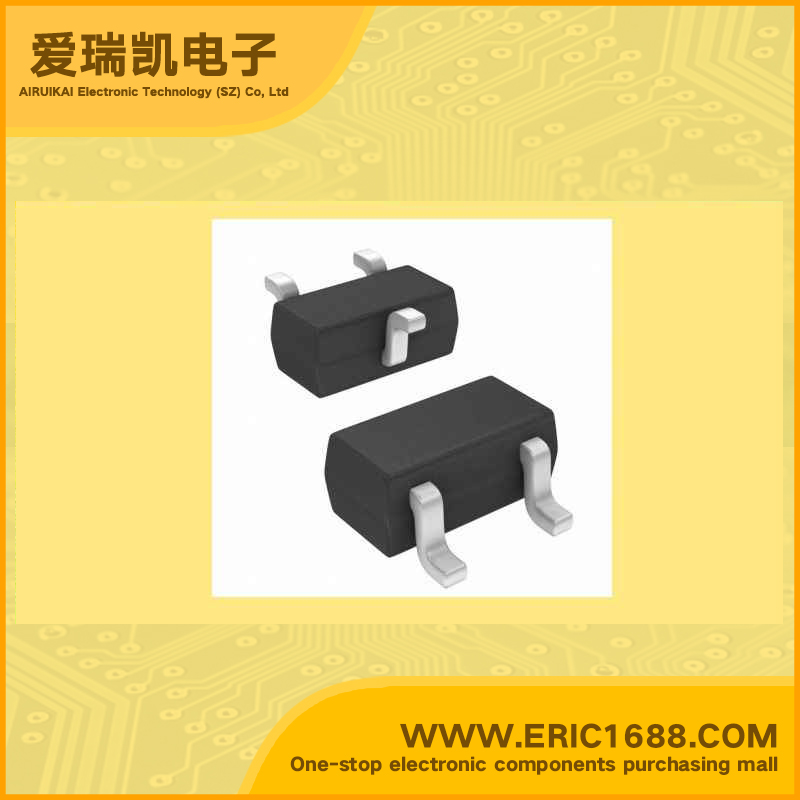

2SC5464 NPN Transistors(BJT) 20V 60mA 7GHz 80~240 SOT-523/SSM marking MY VHF/UHF band low noise amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 60mA |
| 截止频率fT Transtion Frequency(fT) | 7GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 160~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | Silicon NPN Epitaxial VHF / UHF band low noise amplify application feature *low noise figure ，high gain *NF=1.1db，|s21e|*2=12db |
| 描述与应用 | NPN硅外延 VHF/ UHF频带低噪声放大应用 特点 *低噪声系数，高增益 NF=1.1分贝，S21E| *2=12分贝 |
