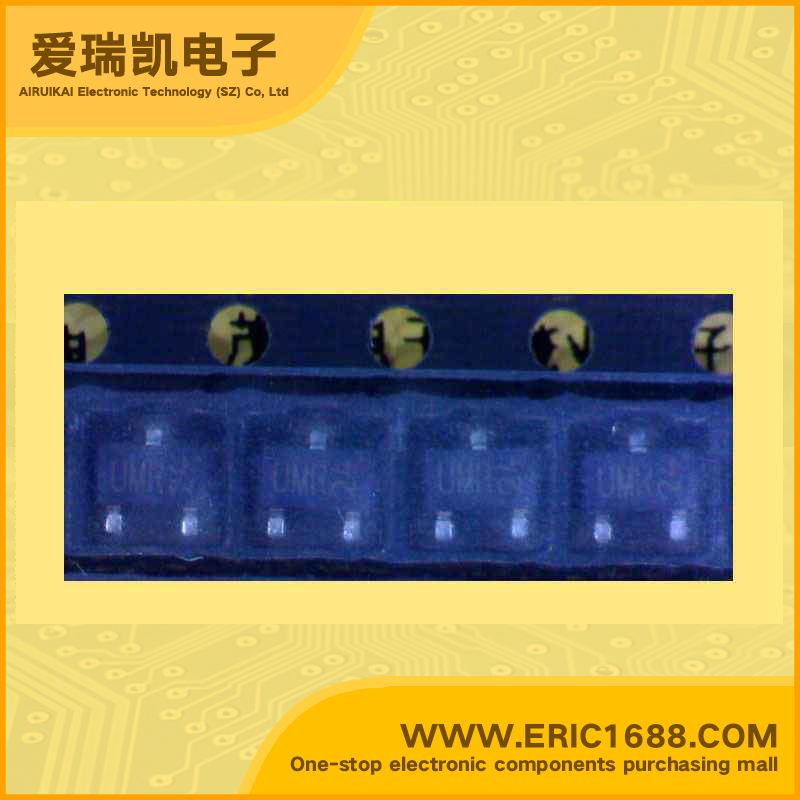

2SC5730 NPN Transistors(BJT) 30V 1A 270MHz 180~390 150mV/0.15V SOT-23/SC-59/SMT3 marking UMR fast switch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
30V
集电极连续输出电流IC
Collector Current(IC)
1A
截止频率fT
Transtion Frequency(fT)
270MHz
直流电流增益hFE
DC Current Gain(hFE)
180~390
管压降VCE(sat)
Collector-Emitter Saturation Voltage
150mV/0.15V
耗散功率Pc
Power Dissipation
500mW/0.5W
Description & ApplicationsMedium power transistor Features 1) High speed switching. (Tf : Typ. : 35ns at IC = 1.0A) 2) Low saturation voltage, typically (Typ. : 150mV at IC = 500mA, IB = 50mA) 3) Strong discharge power for inductive load and capacitance load. Applications Small signal low frequency amplifier High speed switching Structure NPN Silicon epitaxial planar transistor
描述与应用中等功率晶体管 特点 1)高速开关。 (TF:典型:为35ns IC=1.0A) 2)低饱和电压,通常   (典型值150mV的IC=500mA,可IB=50毫安) 3)感性负载和放电功率强 电容负载。 应用 低频小信号放大器 高速开关 结构 NPN硅外延平面型晶体管
