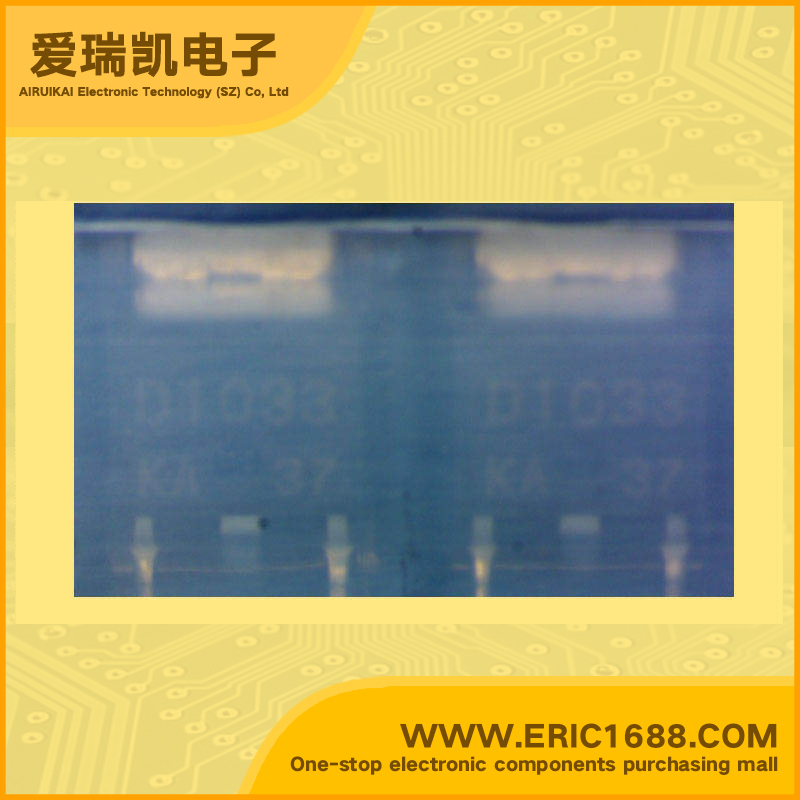

2SD1033-E1 NPN Transistors(BJT) 200V 2A 10MHz 40~200 200mV/0.2V TO-252/DPAK marking D1033 color TV Vertical deflection output
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 200V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 150V |
| 集电极连续输出电流IC Collector Current(IC) | 2A |
| 截止频率fT Transtion Frequency(fT) | 10MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 40~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 200mV/0.2V |
| 耗散功率Pc Power Dissipation | 2W |
| Description & Applications | Silicon NPN epitaxial transistors description 2SD1033 is designed for color TV Vertical deflection output especially in hybrid integrated circuits Features * high voltage Vceo=150V |
| 描述与应用 | NPN硅外延晶体管 描述 2SD1033是专为彩电垂直偏转输出 特别是在混合集成电路 特点 *高电压VCEO=150V |
