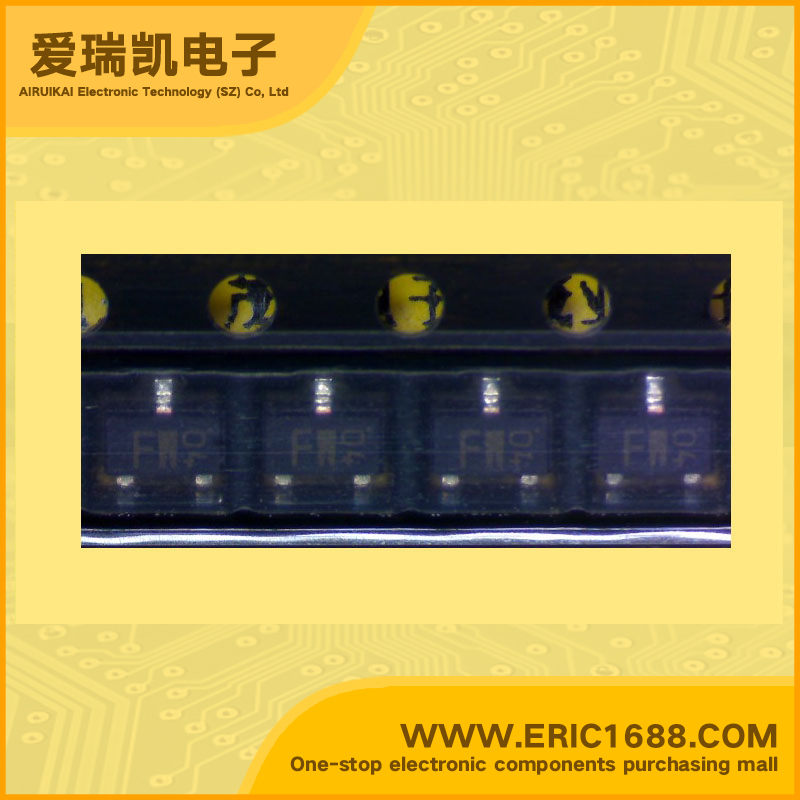

2SD2653 NPN Transistors(BJT) 15V 2A 360MHz 270~680 90mV SOT-23/SC-59/SMT3 marking FW low-frequency amplifierdriver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 2A |
| 截止频率fT Transtion Frequency(fT) | 360MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 270~680 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 90mV |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | Application Low frequency amplifier Driver Features 1) A collector current is large. 2) VCE(sat) ≦ 180mV at IC = 1A / IB = 50mA |
| 描述与应用 | 应用 低频放大器驱动器 特点 1）集电极电流是很大的。 2）VCE（sat）≦180mV 在IC=1A / IB=50毫安时 |
