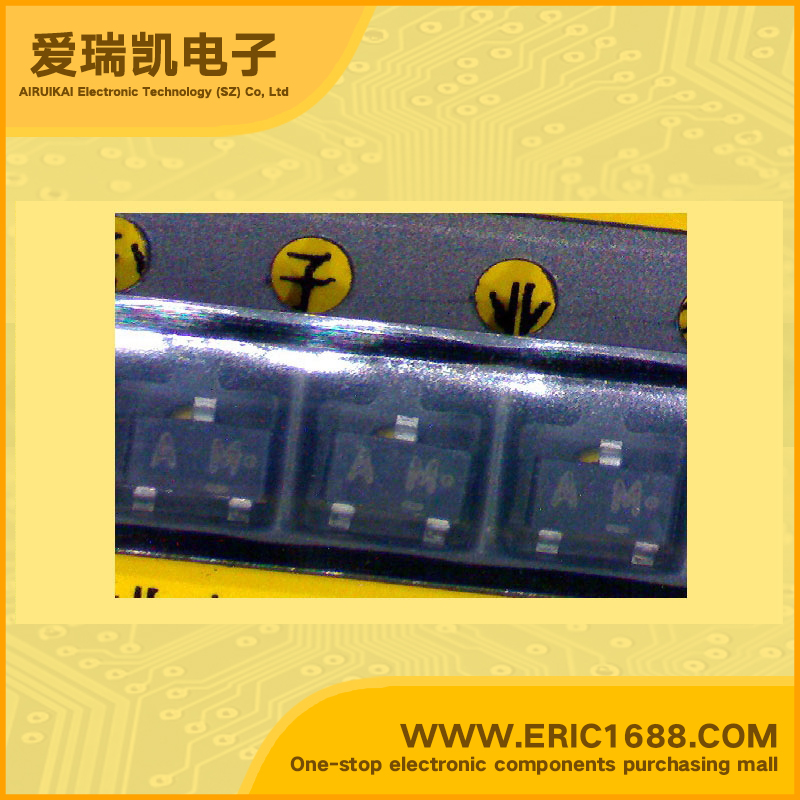

2SJ284 MOSFET P-Channel -30V -3A 1.5ohm SOT-23 marking AM high-speed switch low voltage drive

Model：2SJ284
Mark / screen / code / typing：AM
Manufacturer：
Date Code：05+4rnopb 05+ROHS
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-30V
最大栅源极电压Vgs(±) Gate-Source Voltage	15V
最大漏极电流Id Drain Current	-3A
源漏极导通电阻Rds Drain-Source On-State Resistance	1.5Ω @-1.5A,-10V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.0--2.0V
耗散功率Pd Power Dissipation	250mW/0.25W
Description & Applications	Low ON resistance Very high-speed switching Low voltage drive
描述与应用	低导通电阻非常高的速度开关低电压驱动
