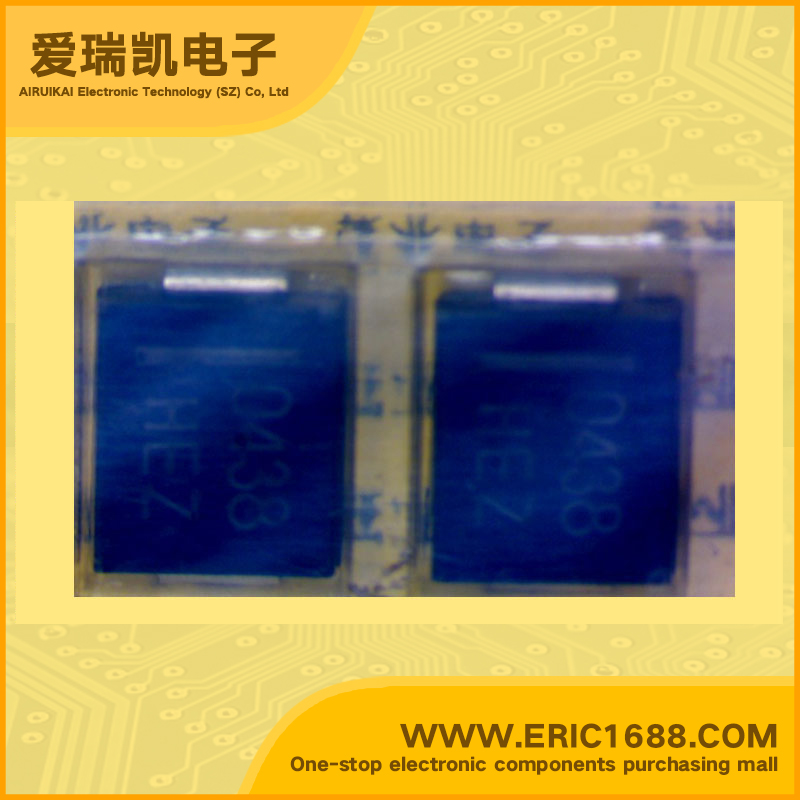

3.0SMCJ24A TVS/ESD 24V 77.2A DO-214AB/SMC-24V marking HEZ
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 24V |
| 反向击穿电压VBR Breakdown Voltage | 28.1V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 3000W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 77.2A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS；Features • Glass passivated die construction •3000W peak pulse power dissipation • 5.0V-170V standoff voltage •Uni- and Bi-Directional versions available •Excellent clamping capability •Fast response time •Plastic case material has UL Flammability classification rating 94V-O •UL recongnized file #E224235 |
| 描述与应用 | 3000W表面贴装瞬态电压抑制器;特性 •玻璃钝化芯片结构 •3000W峰值脉冲耗散功耗 •关断电压5.0V-170V •单向和双向可用版本 •出色的钳位能力 •快速响应时间 •塑料外壳材料具有UL可燃性分类等级94V-O •UL认证文件＃E224235 |
