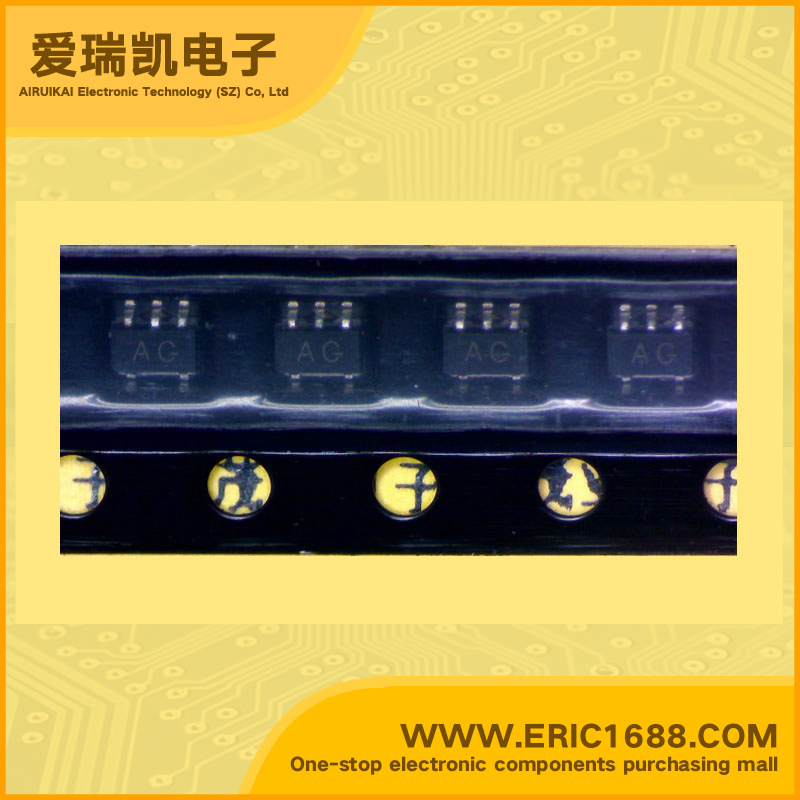

Integrated Circuit（IC） OR gate 74AHC1G32GW SOT-353/SC-88A/TSSOP5 marking AG
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.5ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | 2-input OR gate；FEATURES Symmetrical output impedance • High noise immunity • ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V • Low power dissipation • Balanced propagation delays • Very small 5-pin package • Output capability: standard |
| 描述与应用 | 2输入或门；特性 对称的输出阻抗 •高抗干扰 •ESD保护： HBM EIA/JESD22-A114-A 超过2000 V MM EIA/JESD22-A115-A超过 200伏 •低功耗 •适度传输延迟 •非常小的5引脚封装 •输出能力：标准 |
