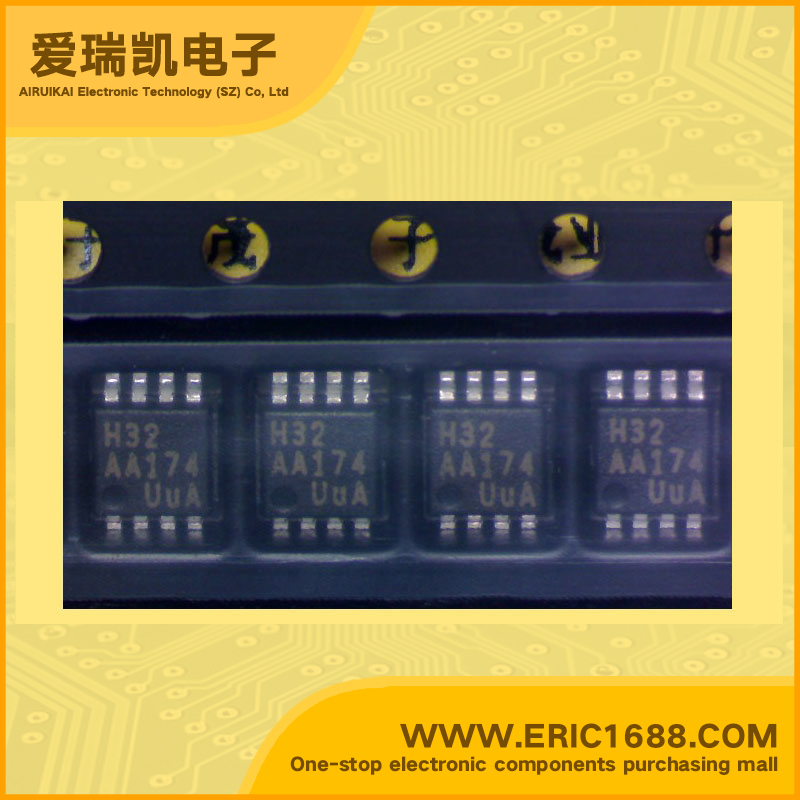

Integrated Circuit（IC） OR gate 74HC2G32DP TSSOP8 marking H32
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -5.2mA，5.2mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平 Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 13ns @ 6V，50pF |
| Description & Applications | 2-input OR gate；Features Wide supply voltage range from 2.0 V to 6.0 V Symmetrical output impedance High noise immunity Low power dissipation Balanced propagation delays Multiple package options ESD protection: HBM JESD22-A114E exceeds 2000 V MM JESD22-A115-A exceeds 200 V Specified from −40 °C to +85 °C and −40 °C to +125 °C |
| 描述与应用 | 双输入或门；特性 2.0 V至6.0 V的宽电源电压范围 对称的输出阻抗 高抗干扰 低功耗 平衡传输时延 多种封装选项 ESD保护： HBM JESD22-A114E超过2000 V MM JESD22-A115-A超过200 V 从-40°C至+85°C和-40°C至+125°C |
