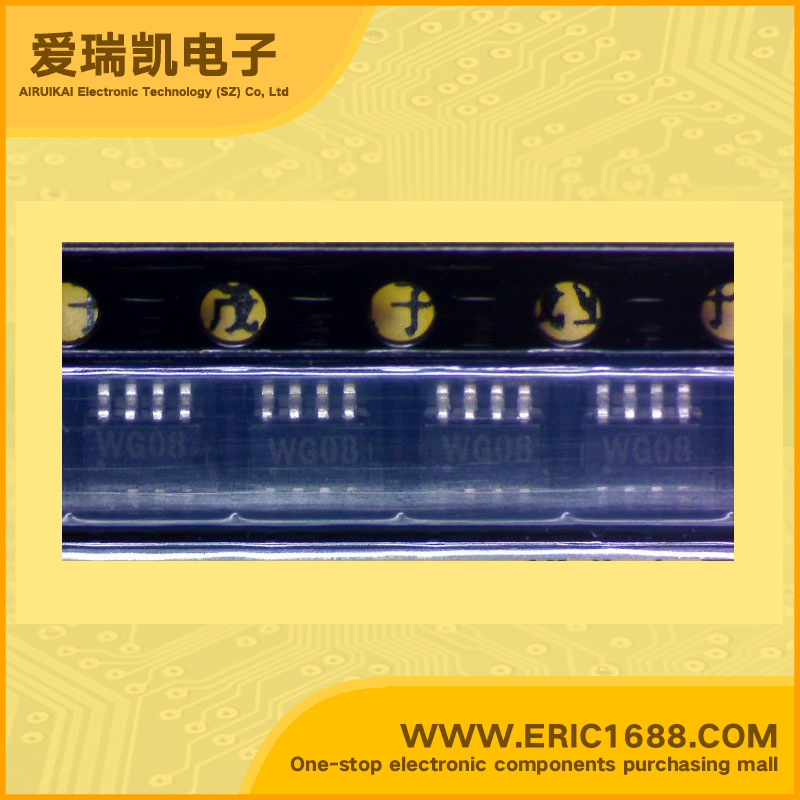

Integrated Circuit(IC) AND gate 74V2G08STR SOT23-8 marking WG08

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.3V~1.1V
高逻辑电平
Logic Level - High
1.7V~4.4V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7ns @ 4.5V ~ 5.5V,50pF
Description & ApplicationsDUAL 2-INPUT AND GATE;Features HIGH SPEED: tPD = 3.8ns (TYP.) at VCC = 5V LOW POWER DISSIPATION:ICC = 1µA(MAX.) at TA = 25°C HIGH NOISE IMMUNITY:VNIH = VNIL= 28% VCC (MIN.) POWER DOWN PROTECTION ON INPUTS SYMMETRICAL OUTPUT IMPEDANCE:|IOH| = IOL= 8mA (MIN) at VCC = 4.5V BALANCED PROPAGATION DELAYS:tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V IMPROVED LATCH-UP IMMUNITY
描述与应用双路双输入与门;特性 高速:TPD =3.8ns电源(VCC = 5V时典型值) 低功耗:ICC=1μA(最大值)在TA= 25°C 高抗干扰性:VNIH= VNIL VCC=28%(最小) 掉电保护的投入 对称的输出阻抗:| IOH= IOL=8毫安(MIN)在VCC= 4.5V 平衡传输时延:TPLH≅TPHL 工作电压范围: VCC(OPR)=2V到5.5V 改进的LATCH-UP抗扰度
