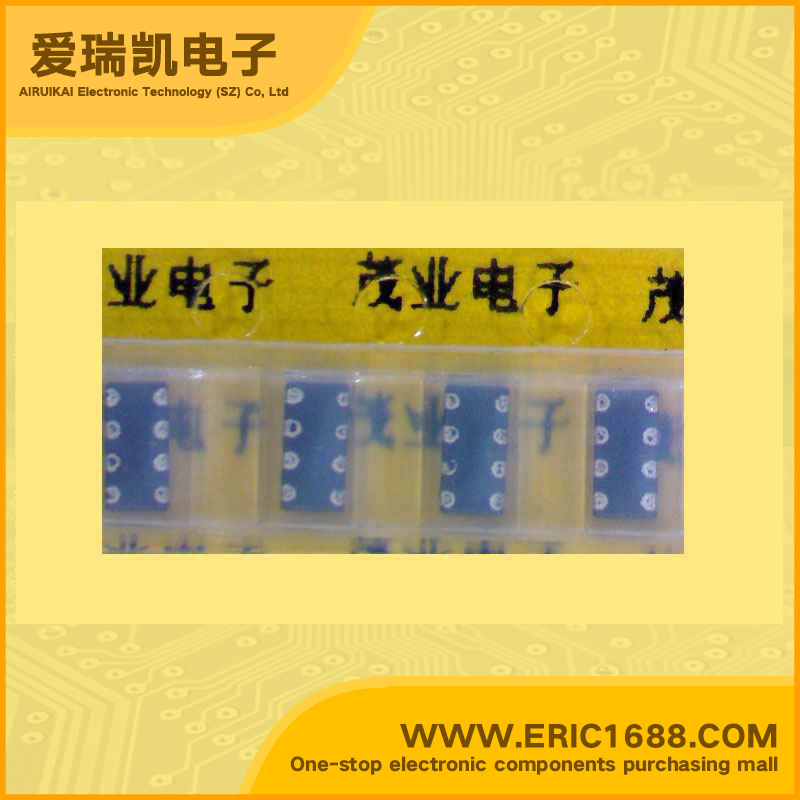

Array-Ferrite Bead ACA3216H4-300-T 1206-300r 4(0603)
| 阵列类型Filter Type | 4线阵列 4 Line Array |
| 不同频率时的阻抗Impedance @ Frequency | 300Ω/Ohm |
| 额定电流Current Rating | 100mA |
| DC电阻DCRDC Resistance | 1.7Ω/Ohm |
| Description & Applications | FEATURES A single ACA series chip can be used to suppress noise on 3, 4, or 6 lines, depending on the selected part. This product is thus an excellent choice for EMC suppression at the I/O lines of compact electronic equipment, such as portables, which require high-density circuit configurations. Two types are available: the M type for general signals and the H type for high-speed (high-frequency band) signals. This noise countermeasure is therefore applicable to various types of circuits. A 3-line type is available specifically for audio applications, such as headphone lines. A 4-line type with a 3216 form factor is available as a direct replacement for standard chip resistor arrays. It can be used without any change to the circuit board land pattern. APPLICATIONS Noise suppression for audio applications, including headphone lines in CD-ROM, DVD, MD, and other equipment (3-line type). Noise suppression for the I/O lines of notebook PCs, word processors, digital TVs and VTRs, and portable communications equipment. |
| 描述与应用 | 特点 可以使用一个单一的ACA系列芯片的噪声抑制。3，4， 或6行，这取决于所选择的部分。因此，该产品是 EMC抑制的I / O线的一个很好的选择 紧凑的电子设备，如便携式设备，这需要 高密度的电路结构。 两种类型可供选择：一般的信号和M型的H 用于高速信号（高频带）的类型。这种噪声 对策，因此，适用于各种类型的 电路。 3线的类型是专门针对音频应用，例如 耳机线。 作为直接与3216的外形是一个4行 更换标准芯片电阻阵列。它可用于 到电路板的土地格局没有任何改变。 应用 音频应用中的噪声抑制，包括耳机 线，CD-ROM，DVD，MD，和其他设备（3线）。 笔记本电脑，文字处理机，数字电视和录像机，便携式通信设备的I / O线的噪声抑制。 |
