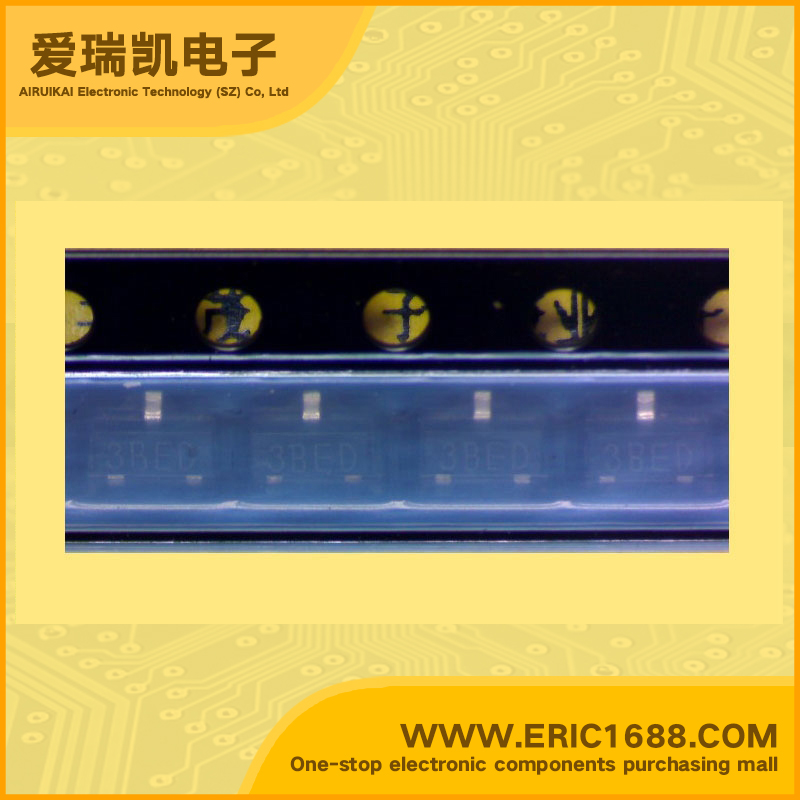

AD1583BRT-R2 Voltage Reference Power Management IC 2.5V~5V SOT-23 marking 3BE Portable,battery-powered equipment
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 2.5V~5V |
| 误差 Tolerance | 0.10% |
| 温度系数 Temperature Coefficient | 50ppm/°C |
| 输入电压 Voltage - Input | 2.5V~5V |
| 阴极电流 Current - Cathode | 70uA |
| 输出电流IOUT Current - Output | 15mA |
| Description & Applications | FEATURES • 2.5 V to 5.0 V Micropower, Precision Series Mode Voltage References • Series Reference (2.5 V, 3 V, 4.096 V, 5 V) • Low Quiescent Current: 70 A max • Current Output Capability: 5 mA • Wide Supply Range: VIN = VOUT + 200 mV to 12 V • Wideband Noise (10 Hz to 10 kHz): 50 V rms • Specified Temperature Range: –40 C to +125 C • Compact, Surface-Mount SOT-23 Package APPLICATIONS • Portable, battery-powered equipment, e.g., notebook computers, cellular phones, pagers, PDAs, GPSs, and DMMs. • Computer workstations. Suitable for use with a wide range of video RAMDACs. • Smart industrial transmitters • PCMCIA cards • Automotive • Hard disk drives • 3 V/5 V, 8-bit/12-bit data converters |
| 描述与应用 | 特点 •2.5 V至5.0 V微功耗，精密的系列模电压参考 •系列参考（2.5 V，3 V，4.096 V，5 V） •低静态电流：70 A最大 •电流输出能力5毫安 •宽电源范围：VIN = VOUT+200mV至12 V •宽带噪声（10 Hz至10 kHz）：50 V有效值 指定温度范围：-40°C至+125C •紧凑的表面贴装SOT-23封装 应用 •便携式，电池供电的设备，如笔记本电脑，手机，传呼机，掌上电脑，GPS装置，数字式万用表。 •计算机工作站。适合视频的RAMDAC与广泛使用。 •智能工业变送器 •PCMCIA卡 •汽车 •硬盘驱动器 •3 V / 5 V，8-bit/12-bit数据转换器 |
