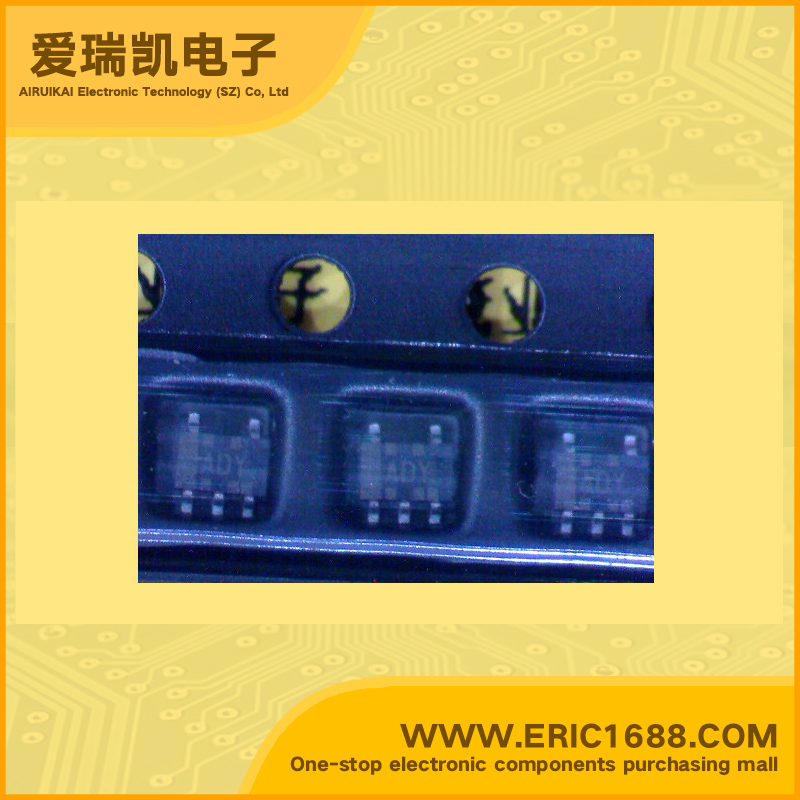

Integrated Circuit（IC） inverter AHC1GU04DCKR SOT-353/SC70-5/SC-88A marking ADY
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平 Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | single inverter gate;Features Operating Range 2-V to 5.5-V VCC Unbuffered Output Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101) |
| 描述与应用 | 单逆变器门;特性 经营范围2-V到5.5 V的VCC 无缓冲输出 闭锁性能超过250 mA每JESD17 ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） - 1000-V带电器件模型（C101） |
