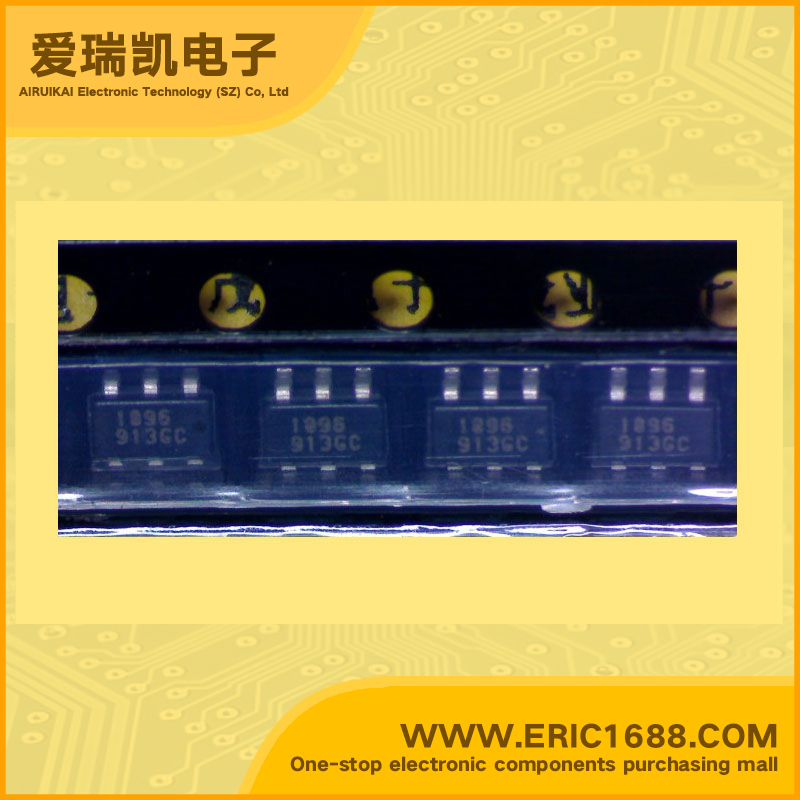

AIC1896CG DC/DC Step-Up Converter 30V SOT-163/SOT23-6 marking 1896 Thin Package Current-Mode Step-Up DC/DC Converter
| 控制方式 MODE | PFM/PWM |
| 输入电压VIN Input Voltage | 2.5~10V |
| 输出电压VOUT Output Voltage | 30V |
| 输出电流IOUT Output Current | 200mA/0.2A |
| 震荡频率FOSC Oscillation Frequency | 1400KHz |
| 内置FET Built-in FET | NMOS |
| Description & Applications | 1.4MHz Thin Package Current-Mode Step-Up DC/DC Converter •Fixed Frequency 1.4MHz Current-Mode PWM Operation. •Adjustable Output Voltage up to 30V. •Guaranteed 13V/ 200mA Output with 5V Input. • 2.5V to 10V Input Range. • Maximum 0.1µA Shutdown Current. •Programmable Soft-Start. •Tiny Inductor and Capacitors are allowed. •Space-Saving SOT-23-6 and TSOT-23-6 Package. |
| 描述与应用 | 1.4MHz的薄型封装电流模式升压型DC/ DC转换器 •PWM电流模式操作下，1.4MHz的固定频率。 •可调输出电压高达30V。 •5V输入，输出13V/200mA。 •2.5V至10V输入范围。 •最大0.1μA关断电流。 •可编程软启动。 •允许纤巧电感器和电容器 •节省空间的SOT-23-6和TSOT-23-6包装。 |
