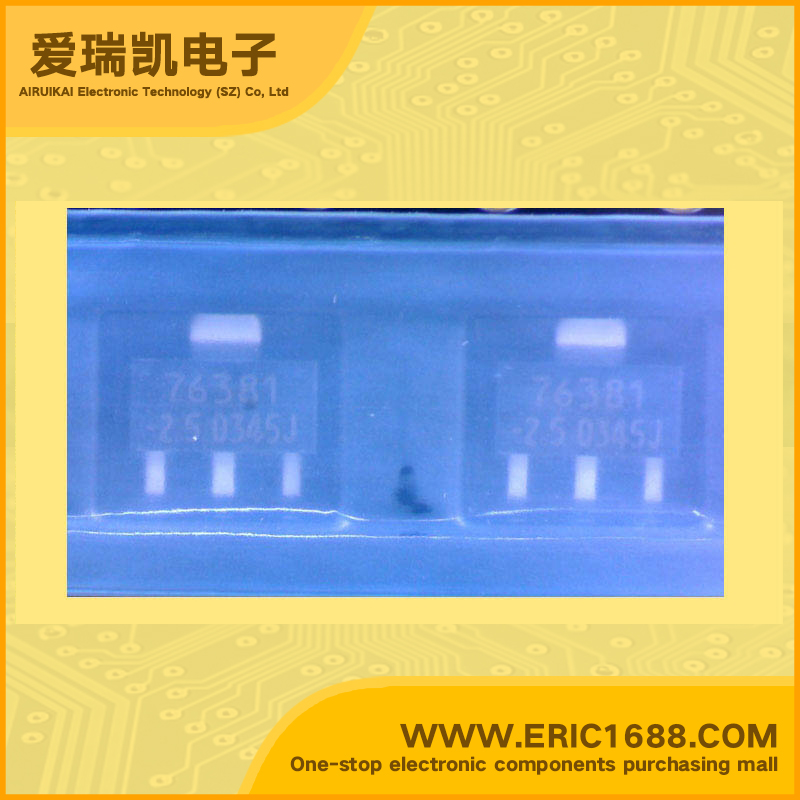

AMC76381-2.5PKT LDO Voltage Regulator 2.5V 450mV/0.45V SOT-89 marking 76381 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 3~10V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 450mV/0.45V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 1764mW/1.764W |
| Description & Applications | 450mA LOW DROPOUT REGULATOR ;•2% internally trimmed output •Input-Output differential of typ. 360mV at 300mA •low quiescent current of 10µA in typical • P-MOS output stage with low RDS, ON. • Short circuit protection •Internal thermal overload protection •Enhanced pin-to-pin compatible to the XC62FP series, RT9261/A. •3-Lead SOT-89 and SOT-223 packages. |
| 描述与应用 | 450毫安低压差稳压器;•内部微调输出2％ •输入输出差分（典型值）。值为360mV在300mA •低静态电流为10μA典型 •P-MOS输出级具有低RDS，ON。 •短路保护 •内部过热保护 •增强的引脚对引脚兼容的XC62FP系列，RT9261/ A •3引脚SOT-89和SOT-223封装。 |
