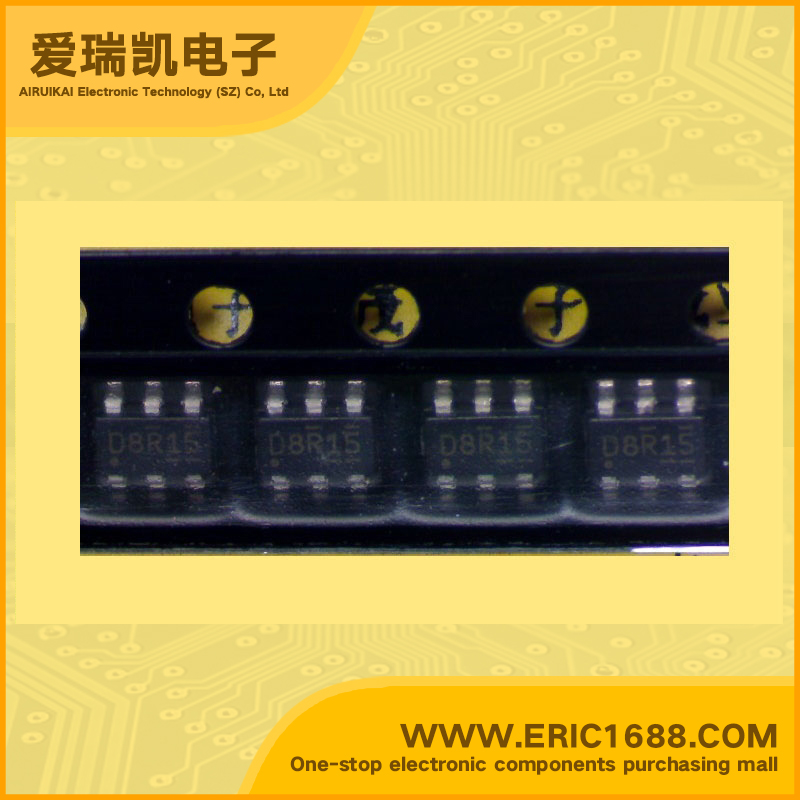

AO6408 N MOSFET+ESD DIODES 20V 8.8A SOT-163/SOT23-6/TSOP6 marking D8R15 ESD application load switch
| 最大源漏极电压Vds Drain-Source Voltage |
20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage |
12V |
| 最大漏极电流Id Drain Current |
8.8A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance |
25.6mΩ@ VGS = 1.8V,ID =4A |
| 开启电压Vgs（th） Gate-Source Threshold Voltage |
0.5~1V |
| 耗散功率Pd Power Dissipation |
2W |
| Description & Applications | N-Channel Enhancement Mode Field Effect Transistor General Description The AO6408 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It offers operation over a wide gate drive range from 1.8V to 12V. It is ESD protected. This device is suitable for use as a load switch. Standard product AO6408 is Pbfree (meets ROHS & Sony 259 specifications). AO6408L is a Green Product ordering option. AO6408 and AO6408L are electrically identical. |
| 描述与应用 | N沟道增强型场效应晶体管 概述 AO6408采用先进沟道技术，提供优良的RDS（ON）和栅极电荷低。它提供了运行在很宽的范围从1.8V到12V的栅极驱动。这是ESD保护。这个装置是适合用于作为负载开关。标准产品AO6408是无铅认证（符合ROHS＆索尼259规格）。 AO6408L是一种绿色产品订购选项。 AO6408和AO6408L是电动相同。 |
