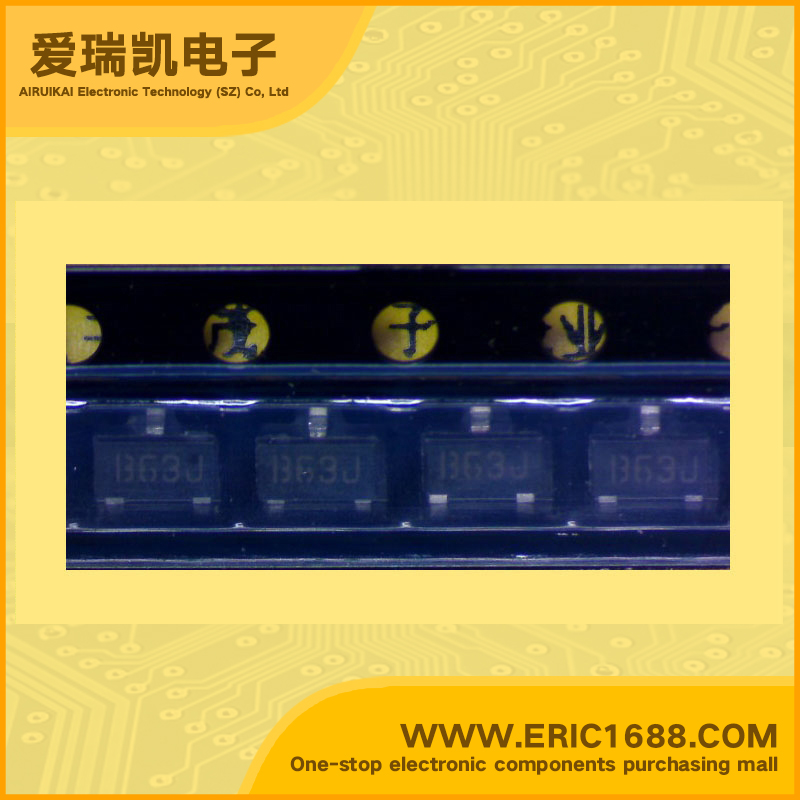

AP432ARA Voltage Reference Power Management IC 1.24V~20V SOT-23 marking B63 Fast Turn-on Response Low Output Noise
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 1.24V~20V |
| 误差 Tolerance | ±0.5% |
| 温度系数 Temperature Coefficient | 30ppm/°C |
| 输入电压 Voltage - Input | 1.24V~20V |
| 阴极电流 Current - Cathode | 150uA |
| 输出电流IOUT Current - Output | 200mA/0.2A |
| Description & Applications | FEATURES - Precision reference voltage AP432 : 1.24V ± 1% AP432A : 1.24V ± 0.5% - Sink current capability: 200mA. - Minimum cathode current for regulation: 150µA - Equivalent full-range temp coefficient: 30 ppm/oC - Fast turn-on Response. - Low dynamic output impedance: 0.2Ω - Programmable output voltage to 20v - Low output noise - Packages: SOT89, SOT23, SOT25, SOP8 and TO92 |
| 描述与应用 | 特点 - 精密参考电压 AP432：1.24V±1％ AP432A：1.24V±0.5％ - 灌电流能力时：200mA。 - 最小阴极电流调节：150μA - 等效满量程温度系数：30 PPM/℃ - 快速导通响应。 - 低动态输出阻抗：0.2Ω - 可编程的输出电压为20V - 低输出噪声 - 封装：SOT89，SOT23，SOT25，SOP8和TO92 |
