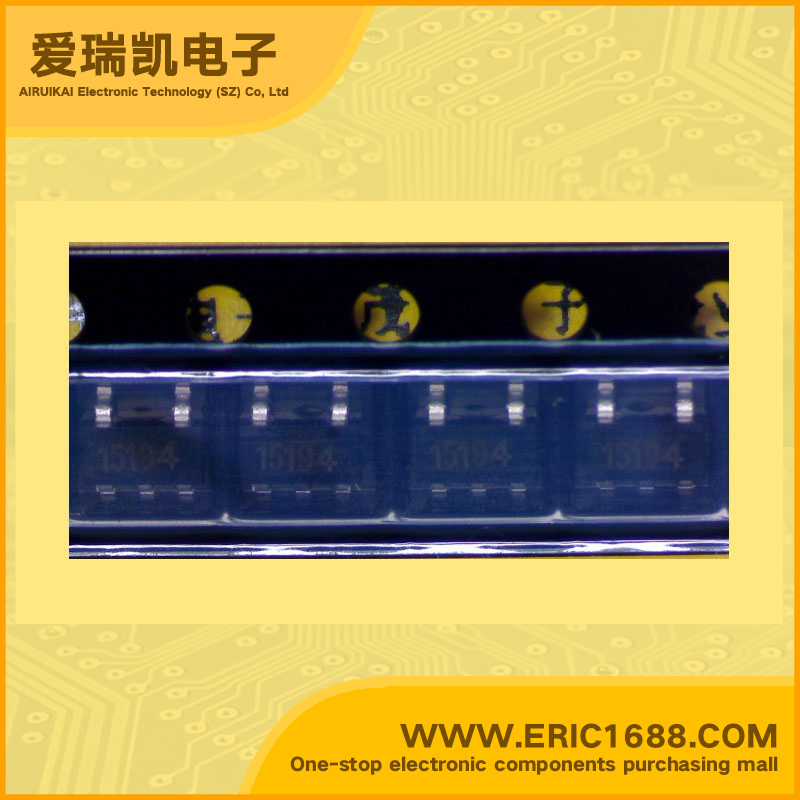

APL5151-15BC LDO Voltage Regulator 1.5V 1V SOT-153/SOT23-5 marking 15194 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6V |
| 输出电压VOUT Voltage - Output | 1.5V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Low IQ, Low Dropout 150mA Fixed Voltage Regulator ；•Low Noise : 60uVRMS(100Hz to 100kHz) • Low Quiescent Current : 50uA • Low Dropout Voltage : 300mV • Very low Shutdown Current : < 0.5uA • Stable with 1uF Output Capacitor • Stable with Aluminum , Tantalum or Ceramic Capacitors • Reverse Current Protection • No Protection Diodes Needed • Built in Thermal Protection • Built in Current Limit Protection • Controlled Short Circuit Current : 50mA • Fast transient Response • Short Setting Time |
| 描述与应用 | 低IQ，低压降150mA的固定电压稳压器;•低噪声：60uVRMS（100Hz到100kHz） •低的50uA静态电流： •低压差：300mV的 •极低的关断电流：<0.5uA的 •稳定与1uF的输出电容器 •稳定的铝，钽或陶瓷电容器 •反向电流保护 •无需保护二极管 •内置热保护 •内置电流限制保护 •控制短路电流：50mA •快速瞬态响应 •设置时间短 |
