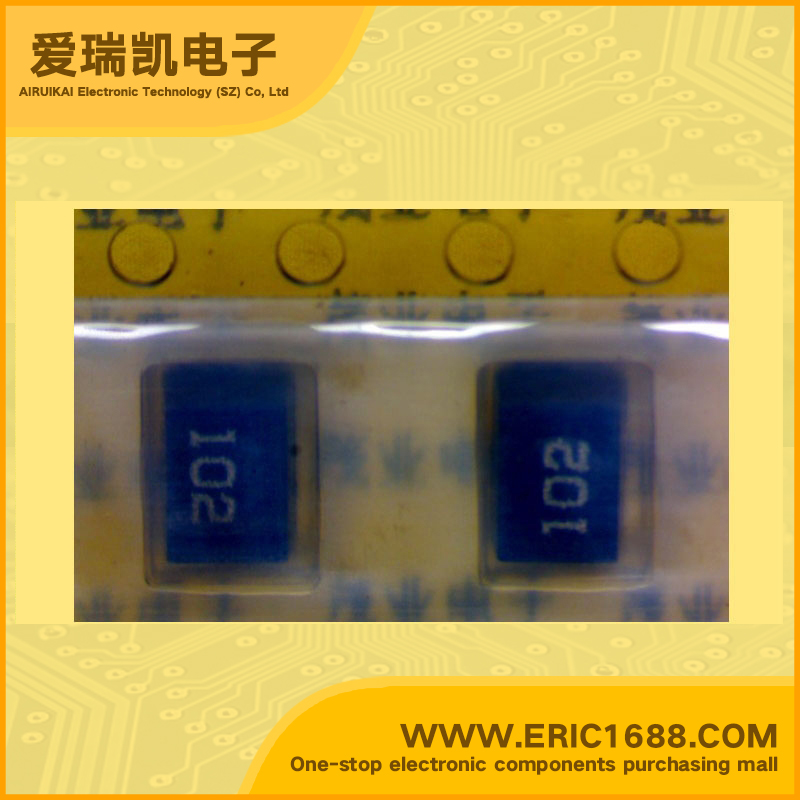

low power inductor B82432-T1105-K 1MH 4532-102 102

Hot selling goods

Product description
电感值
Inductance
1MH
误差
Tolerance
±10%
额定电流
Current Rating
70mA
饱和电流
Current - Saturation
不同频率时的Q值
Q @ Frequency
20 @ 252kHz
自振谐频率SRF
Frequency - Self Resonant
2.3MHz
DC电阻DCR
DC Resistance (DCR)
30Ω/Ohm
屏蔽
Shielding
无屏蔽 Unshielded
Description & ApplicationsSize 1812 (EIA) or 4532 (IEC) Rated inductance 1,0 to 1000 mH Rated current 60 to 1300 mA Construction ■ Ferrite core ■ Laser-welded winding, flame-retardant encapsulation Features ■ High current handling capability ■ Suitable for reflow (IR and vapor phase) and wave soldering ■ Same measuring frequency for L and Q Applications ■ Filtering of supply voltages, coupling, decoupling ■ Antenna systems ■ DC/DC converters ■ Automotive electronics (e.g. single-wire CAN
描述与应用大小1812(EIA)或4532(IEC) 额定电感1,0到1000 mH的 额定电流60至1300毫安 施工 ■铁氧体磁芯 ■激光焊接绕组,阻燃封装 特点 ■高电流处理能力 ■适用于回流焊和波峰焊(IR和汽相) ■相同的测量频率为L和Q 应用 ■电源电压滤波,耦合,去耦 ■天线系统 ■DC/ DC转换器 ■汽车电子产品
