BAT54A common cathodeSBD Schottky Barrier Diodes 30V 200mA/0.2A 800mV/0.8V SOT-23/SC-59 marking WV3 fast switch

Model：BAT54A

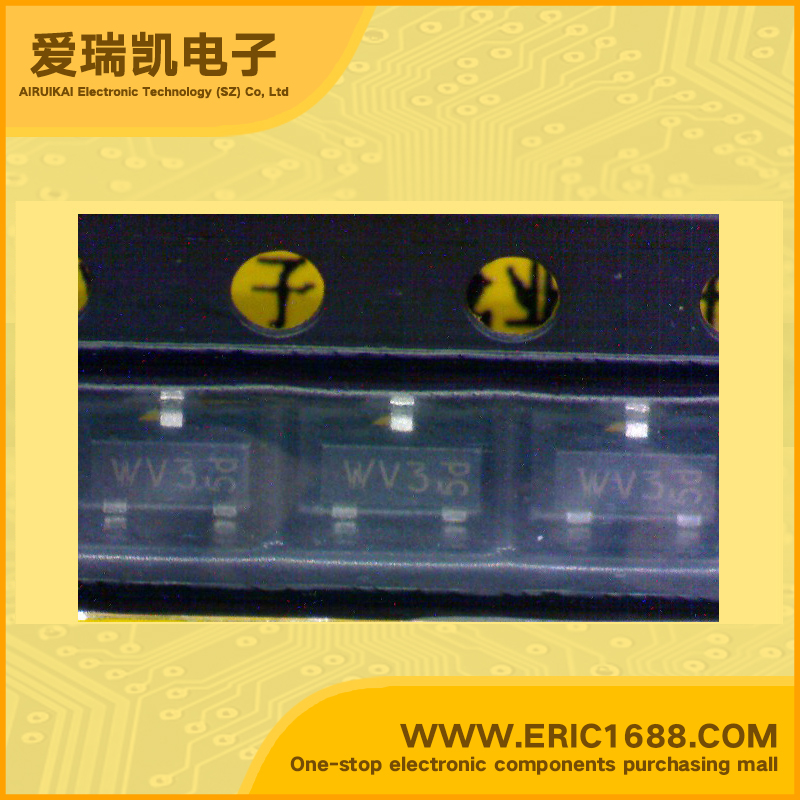

Mark / screen / code / typing：WV3
Manufacturer：
Date Code：07+15KNOPB 05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	30V
平均整流电流Io AVerage Rectified Current	200mA/0.2A
最大正向压降VF Forward Voltage(Vf)	800mV/0.8V
最大耗散功率Pd Power dissipation	230MW/0.23W
Description & Applications	· Low forward voltage · Guard ring protected · Ultra high-speed switching · Voltage clamping · Protection circuits · Blocking diodes. · Common Anode Schottky barrier diode
描述与应用	·低正向电压低压降 ·保护环保护 ·超高速开关 ·电压钳位 ·保护电路 ·阻塞二极管。 ·共阳极肖特基势垒二极管
