BAT54R SBD Schottky Barrier Diodes 30V 200mA/0.2A 520mV/0.52V SOT-23/SC-59 marking P4/LV3 low forward voltage fast switch

Model：BAT54R

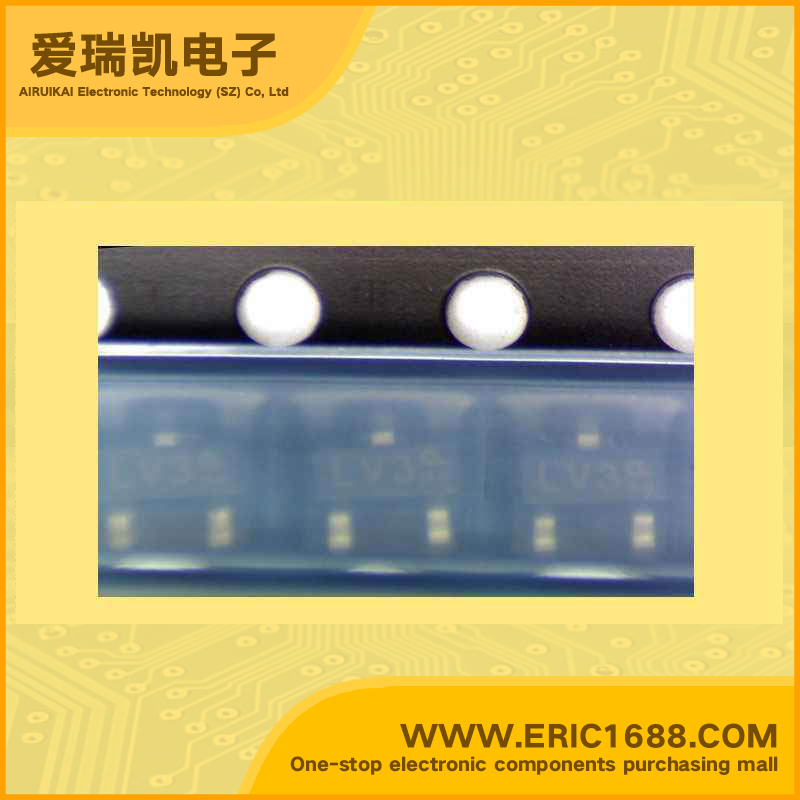

Mark / screen / code / typing：P4/LV3
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	30V
平均整流电流Io AVerage Rectified Current	200mA/0.2A
最大正向压降VF Forward Voltage(Vf)	520mV/0.52V
最大耗散功率Pd Power dissipation	225MW/0.225W
Description & Applications	• Extremely Fast Switching Speed • Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc •Schottky barrier diode
描述与应用	•极快的开关速度 •低正向电压 - 0.35伏特（Typ）@ IF=10 MADC •肖特基势垒二极管“
