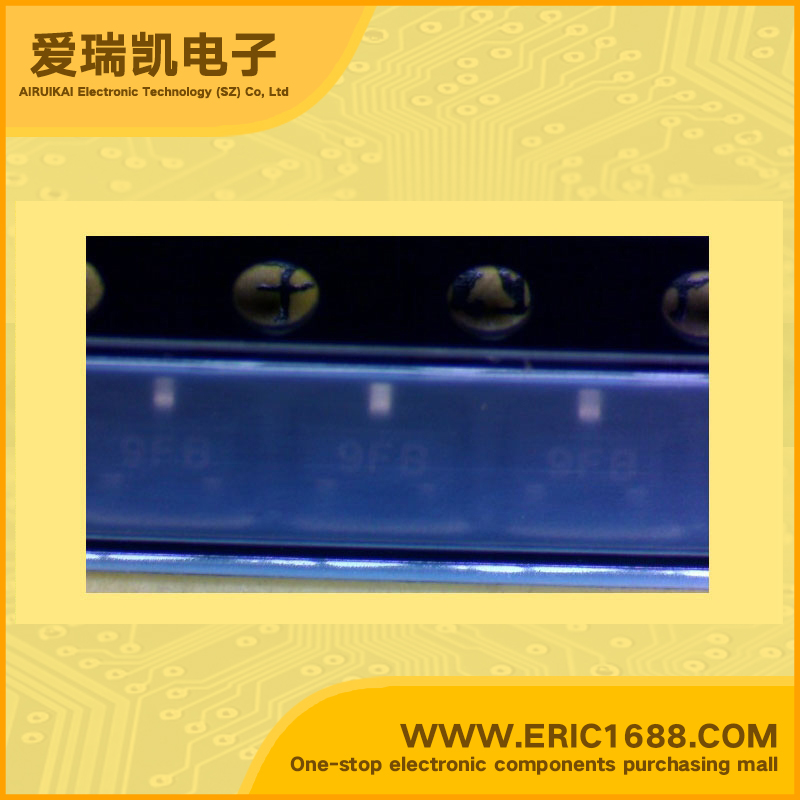

BC80725MTF PNP transistors(BJT) Vcbo=-50V Vco=-45v Ic= -800mA/-0.8A ft=100MHz hfe=160~400 Vce=-700mV/-0.7V SOT-23/SC-59 marking 9FB switch and amplifier

Price (excluding freight):
Batches(PCS):
$0.018
≤99
$0.016
≤499
$0.014
≤999
$0.012
≤2999
$0.011
FCL

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
−50V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−45V
集电极连续输出电流IC
Collector Current(IC)
-800mA/-0.8A
截止频率fT
Transtion Frequency(fT)
100MHz
直流电流增益hFE
DC Current Gain(hFE)
160~400
管压降VCE(sat)
Collector-Emitter SaturationVoltage
−700mV/-0.7V
耗散功率Pc
PoWer Dissipation
310mW/0.31W
Description & Applications Switching and Amplifier Applications • Suitable for AF-Driver stages and low power output stages • Complement to BC817/BC818
描述与应用 开关和放大器应用 •适用于AF驱动阶段和低功率输出级 •BC817/BC818补
