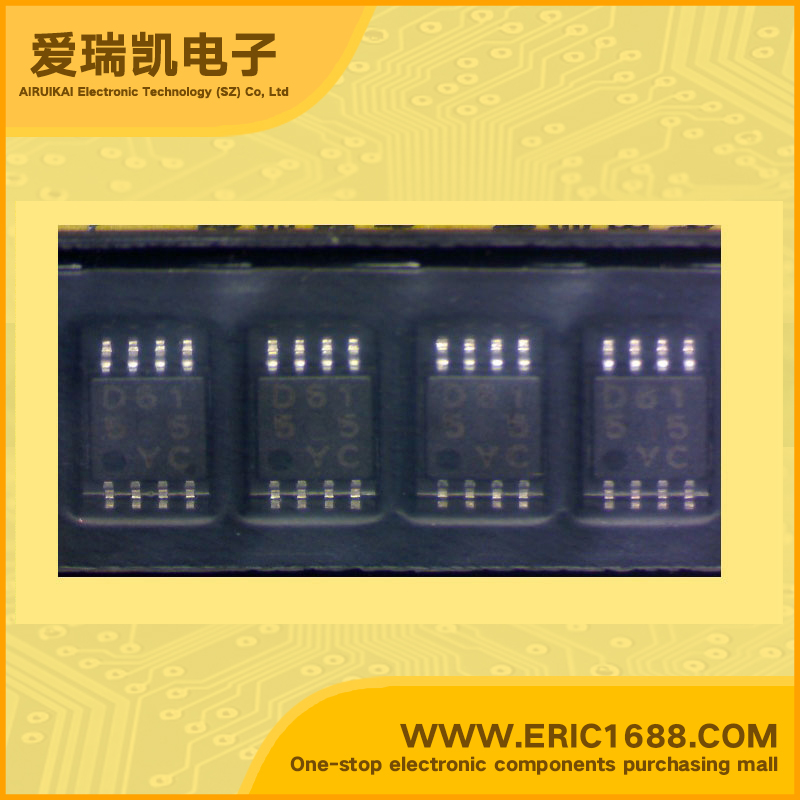

BD6155FVM Constant Current LED Driver Switched Capacitor backlight 120KHz 2.9V ~ 5.5V 5.6V MSOP8 D6155 DC/DC converter for LCD back light
| 恒流 Constant Current | 是 YES |
| 恒压 Constant Voltage | |
| 拓扑 Topology | 切换式电容器（充电泵） Switched Capacitor (Charge Pump) |
| 输出数 Number of Outputs | 1 |
| 内部驱动器 Internal Driver | 是 YES |
| 初级类型 Type - Primary | 背光 Backlight |
| 次级类型 Type - Secondary | 白色 LED White LED |
| 频率 Frequency | 120KHz |
| 电源电压 Voltage - Supply | 2.9V ~ 5.5V |
| 输出电压 Voltage - Output | 5.6V |
| Description & Applications | FEATURES • DC/DC converter for LCD back light • Built-in charging pump step-up circuit. • Built-in constant current driver for LED. (Current value : 4 steps variable) • Ultra small MSOP8 package. (Height 0.9mm Max.) Typical Applications • Small portable appliances, such as cellular phones, PHS, PDA • Battery-powered equipments using the white LED. |
| 描述与应用 | 特点 •DC / DC转换器，用于LCD背光 •内置在充泵升压电路。 •内置LED恒流驱动器。 （当前值：4步骤变量） •超小型MSOP8封装。 （高0.9mm以下）。 典型应用 •小型便携式设备，如手机，小灵通，PDA •电池供电的设备使用白光LED。 |
