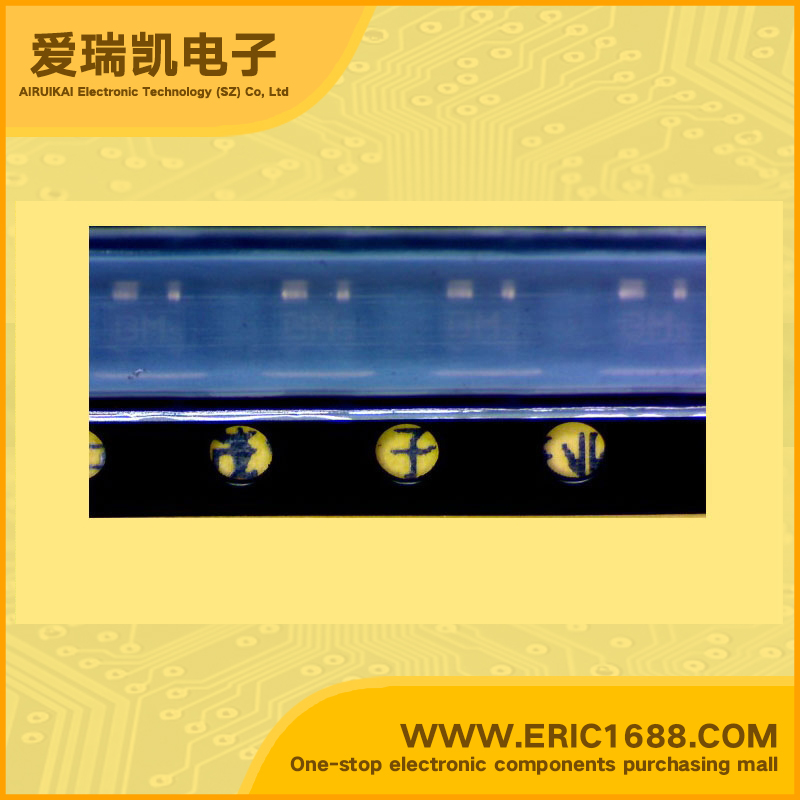

RF amplifier BGA427 SOT-343 marking BM
| 频率 Frequency | 0Hz~3GHz |
| P1dB | |
| 增益 Gain | 18.5dB |
| 噪声系数 Noise Figure | 2.2dB |
| RF 类型 RF Type | 通用 General Purpose |
| 电源电压 Voltage - Supply | 2V~5V |
| 电源电流 Current - Supply | 25mA |
| 测试频率 Test Frequency | 1.8GHz |
| Description & Applications | FEATURES • Si-MMIC-Amplifier in SIEGET 25 Technology • Cascadable 50 -gain block • Unconditionally stable • Gain |S21|2= 18,5 dB at 1.8 GHz (appl.1) gain |S21|2= 22 dB at 1.8 GHz (appl.2) IP3out= +7 dBm at 1.8 GHz (VD=3V, ID=9.4mA) • Noise figure NF = 2.2 dB at 1.8 GHz • typical device voltage VD = 2 V to 5 V • Reverse isolation < 35 dB (appl.2) |
| 描述与应用 | 特点 •硅MMIC放大器在SIEGET25技术 •级联50增益块 •无条件稳定 •增益| S21|2=18,5分贝在1.8 GHz（appl.1）的， 增益| S21| 2= 22分贝在1.8 GHz（appl.2）的 IP3out=+7 dBm的在1.8 GHz（VD= 3V，ID=9.4毫安） •噪声系数NF= 2.2 dB，在1.8 GHz的 •典型的设备电压VD=2 V至5 V •反向隔离<35分贝（appl.2） |
