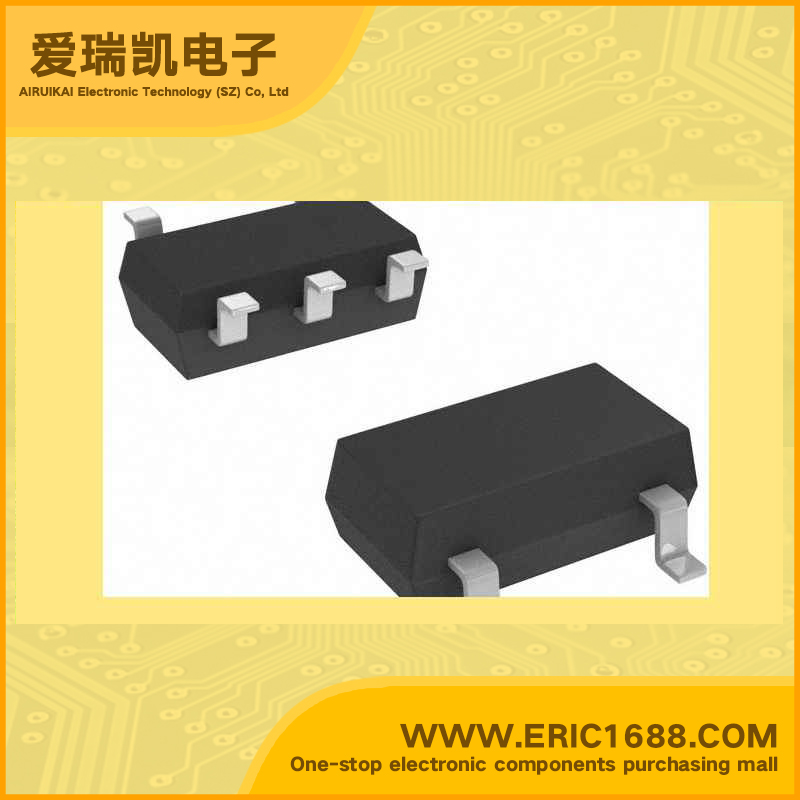

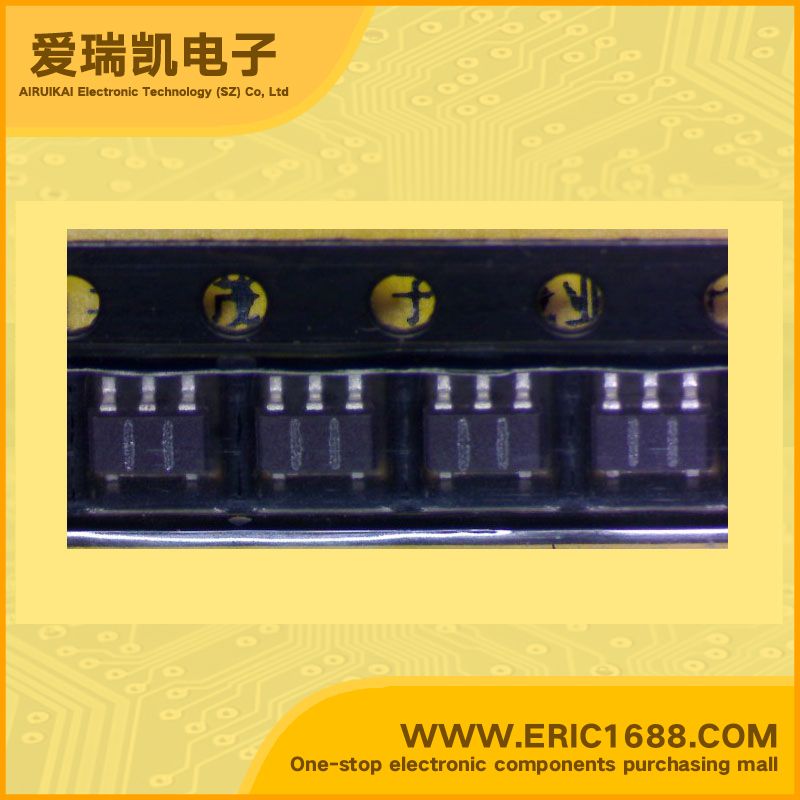

Integrated Circuit（IC） NAND gate BU4S11 SOT-153/SMP5 marking 11
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 3V~16V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -3.4mA，3.4mA |
| 低逻辑电平 Logic Level - Low | 1.5V~4V |
| 高逻辑电平 Logic Level - High | 3.5V~11V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 30ns @ 15V，50pF |
| Description & Applications | Single 2-input NAND gate；Features Low current dissipation Super-mini mold package designed for surface mounting Wide range of operating power supply voltage Capable of driving two L-TTL inputs and one LS-TTL input directly |
| 描述与应用 | 单路双输入与非门;特性 低电流损耗 超迷你模具封装专为表面安装 工作电源电压范围宽 能够直接驱动两个L-TTL输入和一个LS-TTL输入 |
