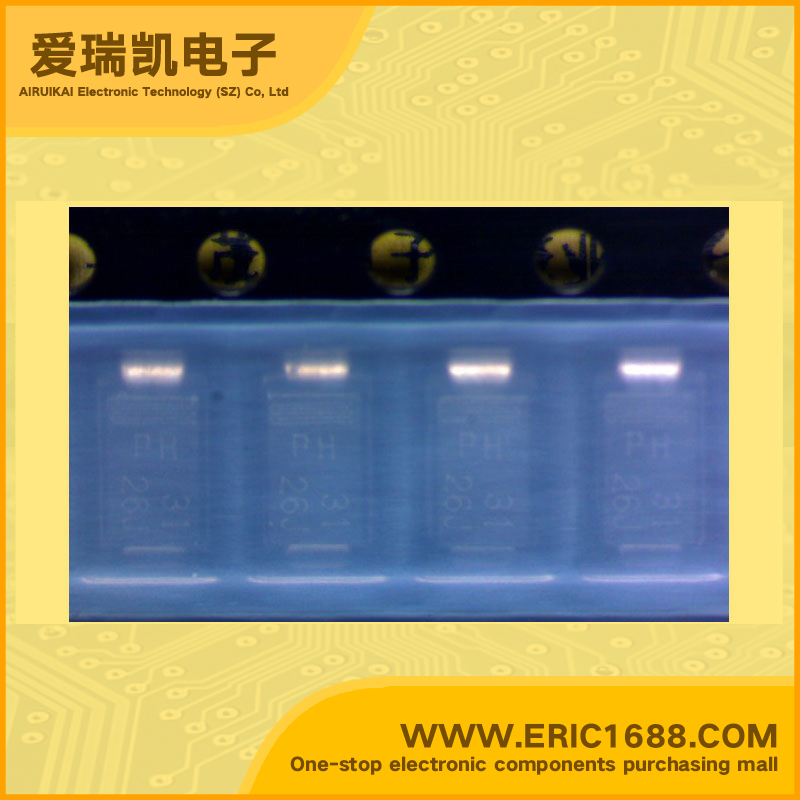

byg26j Fast Recovery Diodes 600V 1A 3.6V 30nS SMA/DO-214AC marking 26j avalanche rectifier/low leakage current

Hot selling goods

Product description
反向电压Vr
Reverse Voltage
600V
平均整流电流Io
AverAge Rectified Current
1A
最大正向电压降VF
Forward Voltage(Vf)
3.6V
反向恢复时间Trr
Reverse Recovery Time
30nS
最大耗散功率Pd
Power dissipation
Description & ApplicationsSMA ultra fast soft-recovery controlled avalanche rectifiers • Glass passivated • High maximum operating temperature • Ideal for surface mount automotive applications • Low leakage current • Excellent stability • Guaranteed avalanche energy absorption capability • UL 94V-O classified plastic package • Shipped in 12 mm embossed tape • Marking: cathode, date code, type code • Easy pick and place. DESCRIPTION DO-214AC surface mountable package with glass passivated chip. The well-defined void-free case is of a transfer-moulded thermo-setting plastic. The small rectangular package has two J bent leads.
描述与应用SMA超快速软恢复 控制雪崩整流器 •玻璃钝化 •最高工作温度 •非常适于表面安装汽车应用 •低漏电流 •优良的稳定性 •保证雪崩能量吸收能力
