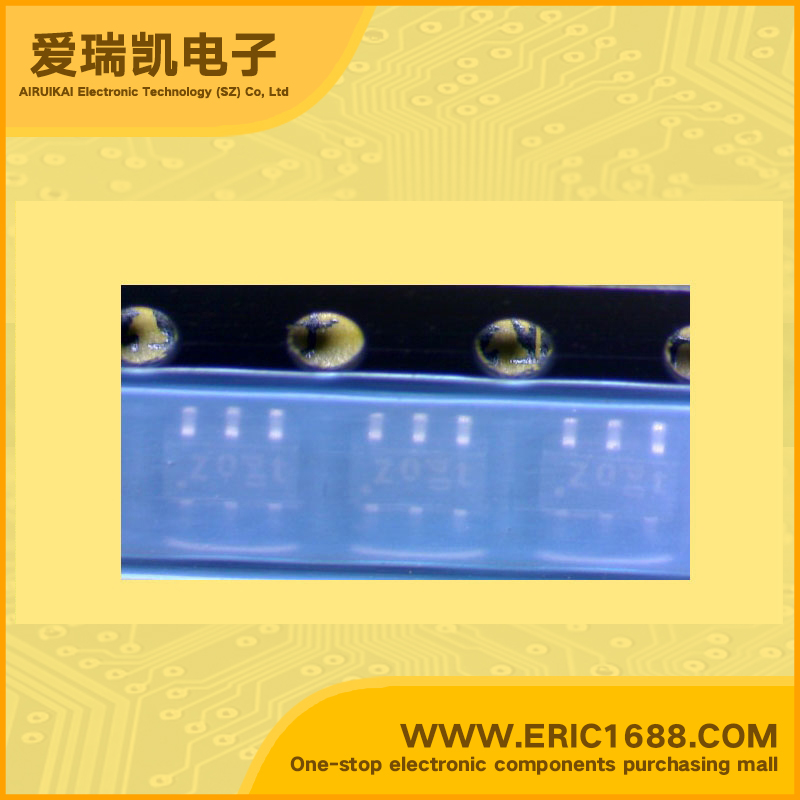

BZA420A TVS/ESD 20V SOT-163/SOT457/SC-74 marking ZO
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 20V |
| 反向击穿电压VBR Breakdown Voltage | |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Quadruple ESD transient voltage suppressor;FEATURES • ESD rating >8 kV, according to IEC1000-4-2 • SOT457 surface mount package • Common anode configuration • Non-clamping range −0.5 to 20 V • Maximum reverse peak power dissipation:19.6 W at tp = 1 ms • Maximum clamping voltage at peak pulse current:28 V at IZSM = 0.7 A.APPLICATIONS • Computers and peripherals • Audio and video equipment • Communication systems • Medical equipment. |
| 描述与应用 | 四ESD瞬态电压 抑制器;特性 •> 8 kV，符合IEC1000-4-2 ESD额定值 •SOT457表面贴装封装 •共阳极配置 •非夹紧范围为-0.5至20 V •最大反向峰值功耗：19.6 W在TP =1毫秒 •最大钳位电压峰值脉冲电流：28 V在IZSM= 0.7 A。 应用 •电脑及周边 •音频和视频设备 •通信系统 •医疗设备。 |
